Ibanez Mono-Rail V (MR-5) Bass Bridge 2BB4ACE003 - Gold
Ibanez Mono-Rail V (MR-5) Bass Bridge 2BB4ACE003 - Gold
Ibanez Mono-Rail V (MR-5) Bass Bridge 2BB4ACE003 - Gold
Ibanez Mono-Rail V (MR-5) Bass Bridge 2BB4ACE003 - Gold

Ibanez Mono-Rail V (MR-5) Bass Bridge 2BB4ACE003 - Gold

Price
Save $-43.99
/
  • In stock, ready to ship
  • Backordered, shipping soon
  • New, Unused Parts
  • Chosen by Professional Guitar Techs
  • Ships Fast from Long Island, NY
  • 30 Day Return Policy
Shipping calculated at checkout.

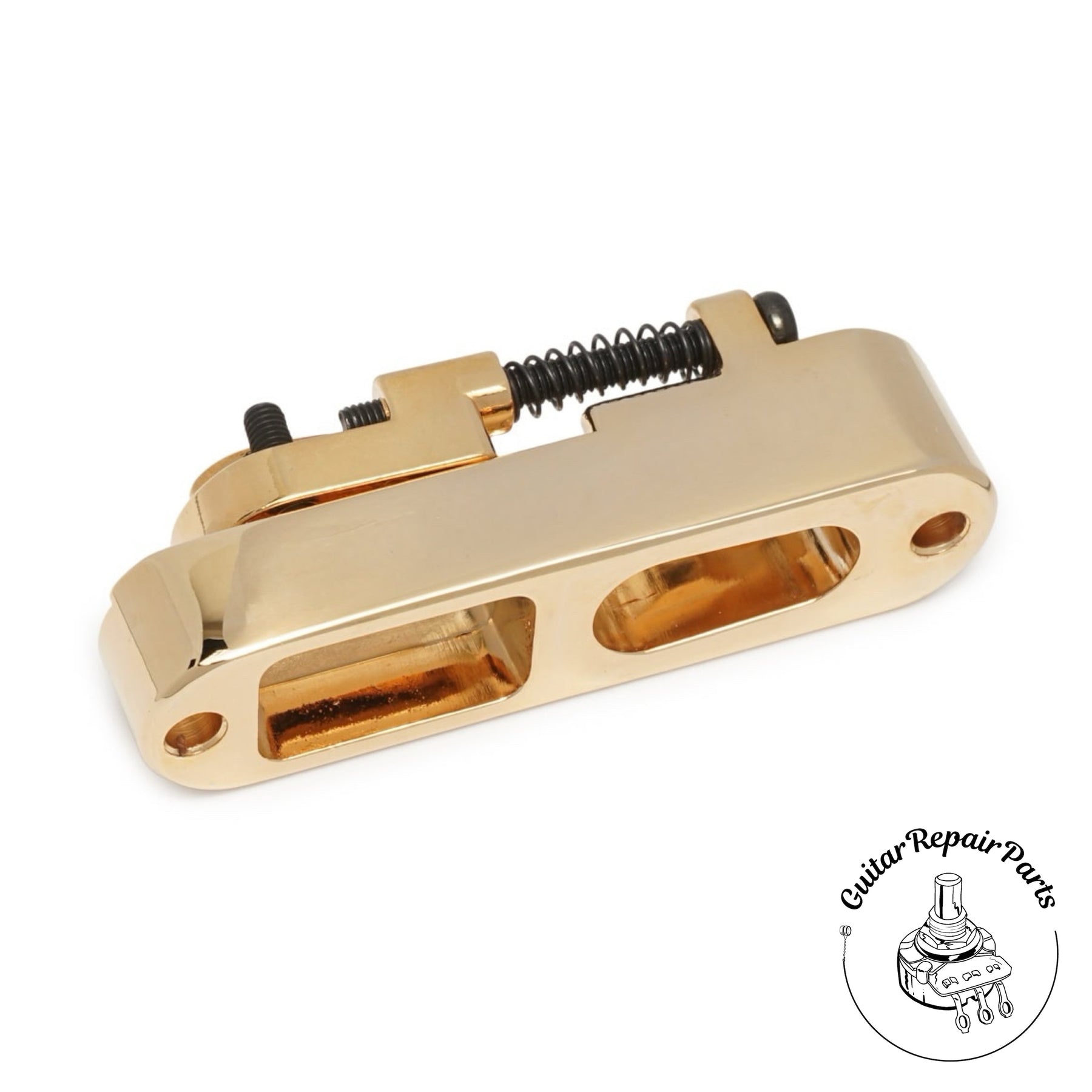

The Mono-rail V is a fixed bridge used on certain Ibanez electric bass models. It is also referred to as the Mono-rail 5, the MR5, or the MR-5. It replaced the Mono-rail IV.

As its name implies the Mono-rail V bridge anchors only a single string as opposed to most bridges used on basses which anchor all four (or more) of the strings. This allows each individual bridge to be mounted at the ideal location to provide perfect intonation. Because of the flexibility this design affords it is used on multi scale basses with fanned frets, although it is also used on many guitars with traditional straight frets.

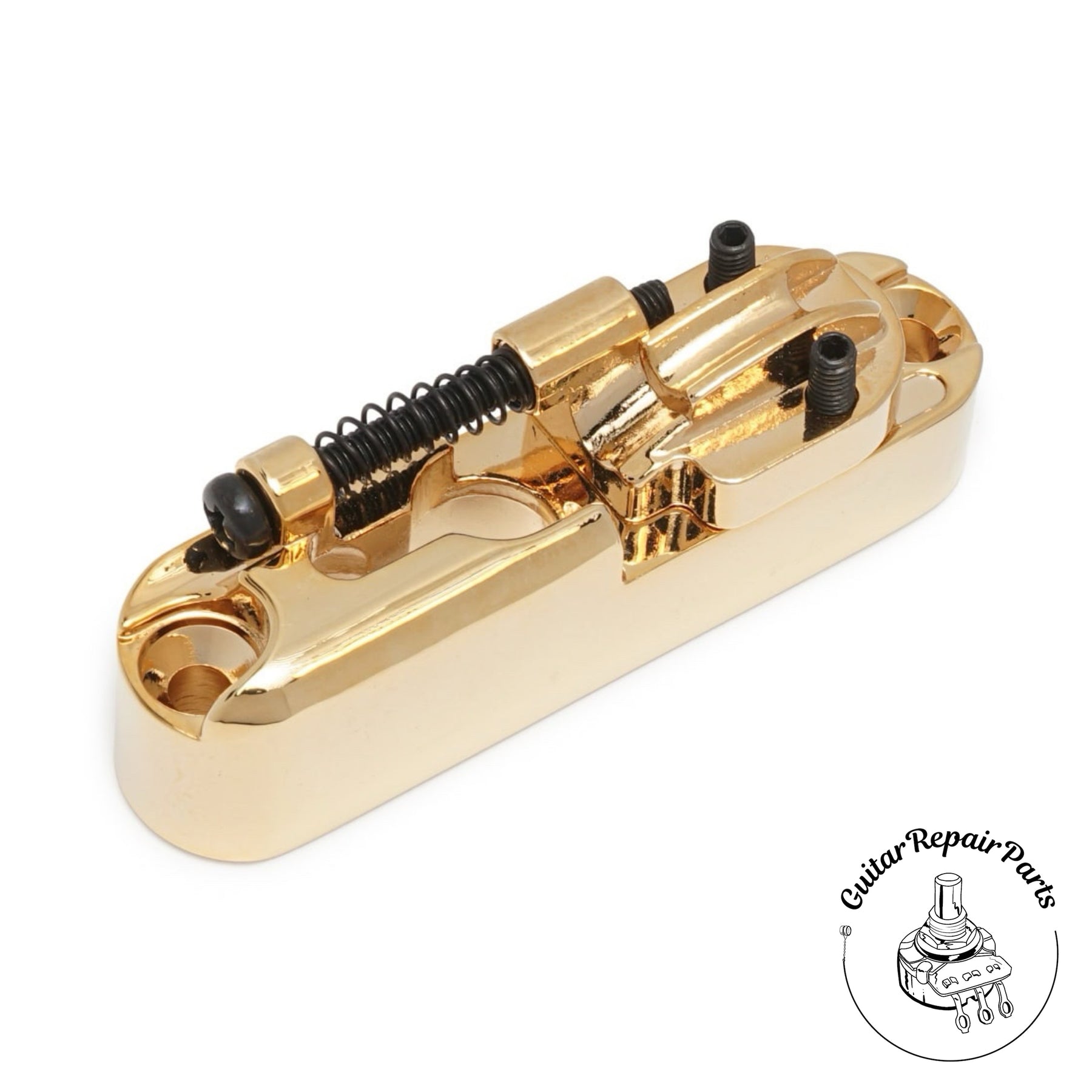

The design allows for equalized tension across all strings while isolating each string so that it vibrates optimally without impacting any others. The saddle can be moved fore and aft to adjust intonation. Intonation is set by adjusting the position of the saddle using the longitudinal positioned Philips screw at the rear of the bridge.

The Mono-rail V bridge was introduced for 2015 on the Soundgear Prestige SR5000, SR5005, and SR5006. It has been used on several models in the Soundgear and BTB series.

Specifications:

  • Top-Loading String Mount
  • Mounting hardware included
  • Sold Individually

Ibanez SKU: 2BB4ACE003

Professional installation is strongly recommended. Improper installation may result in damage to the product and/or instrument.
