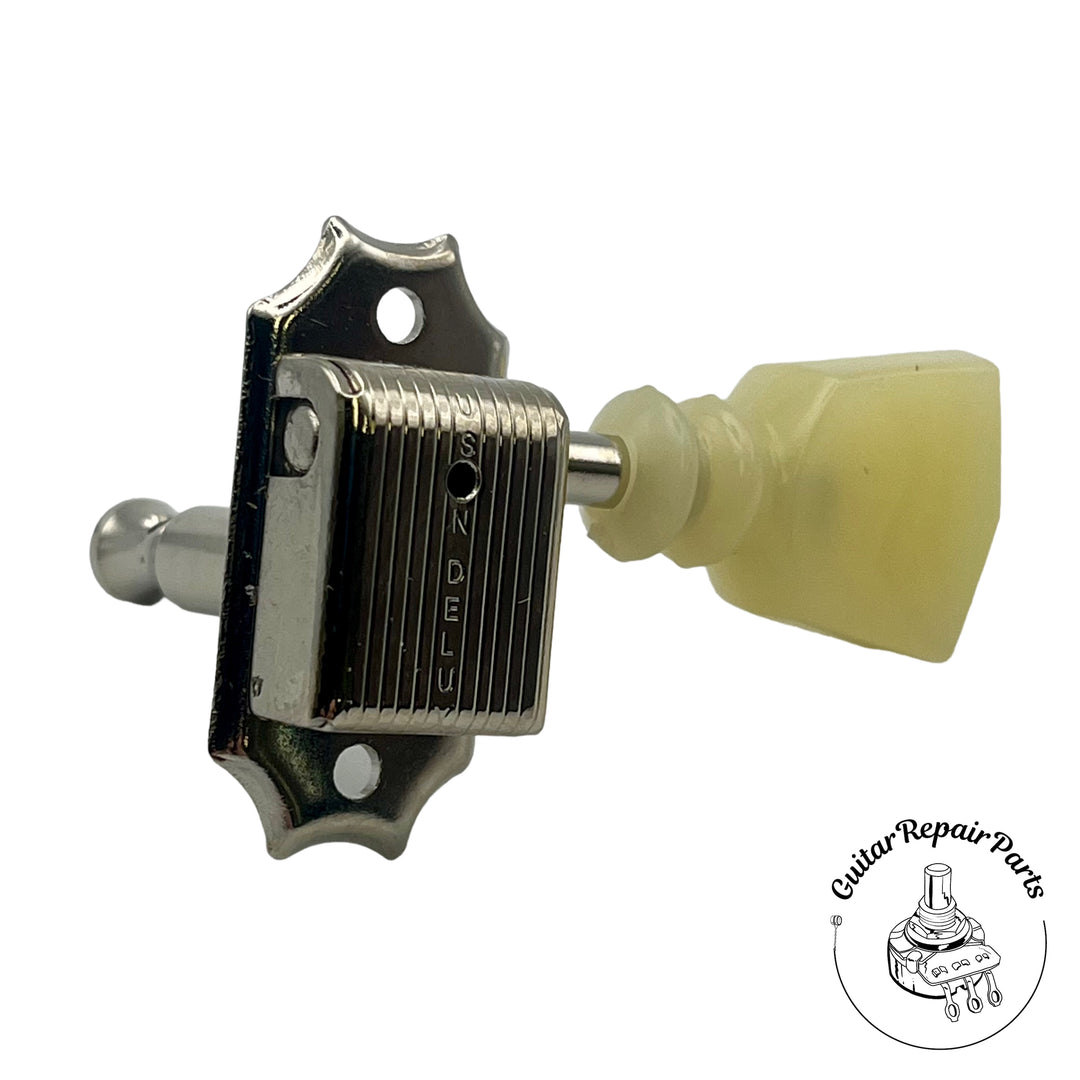

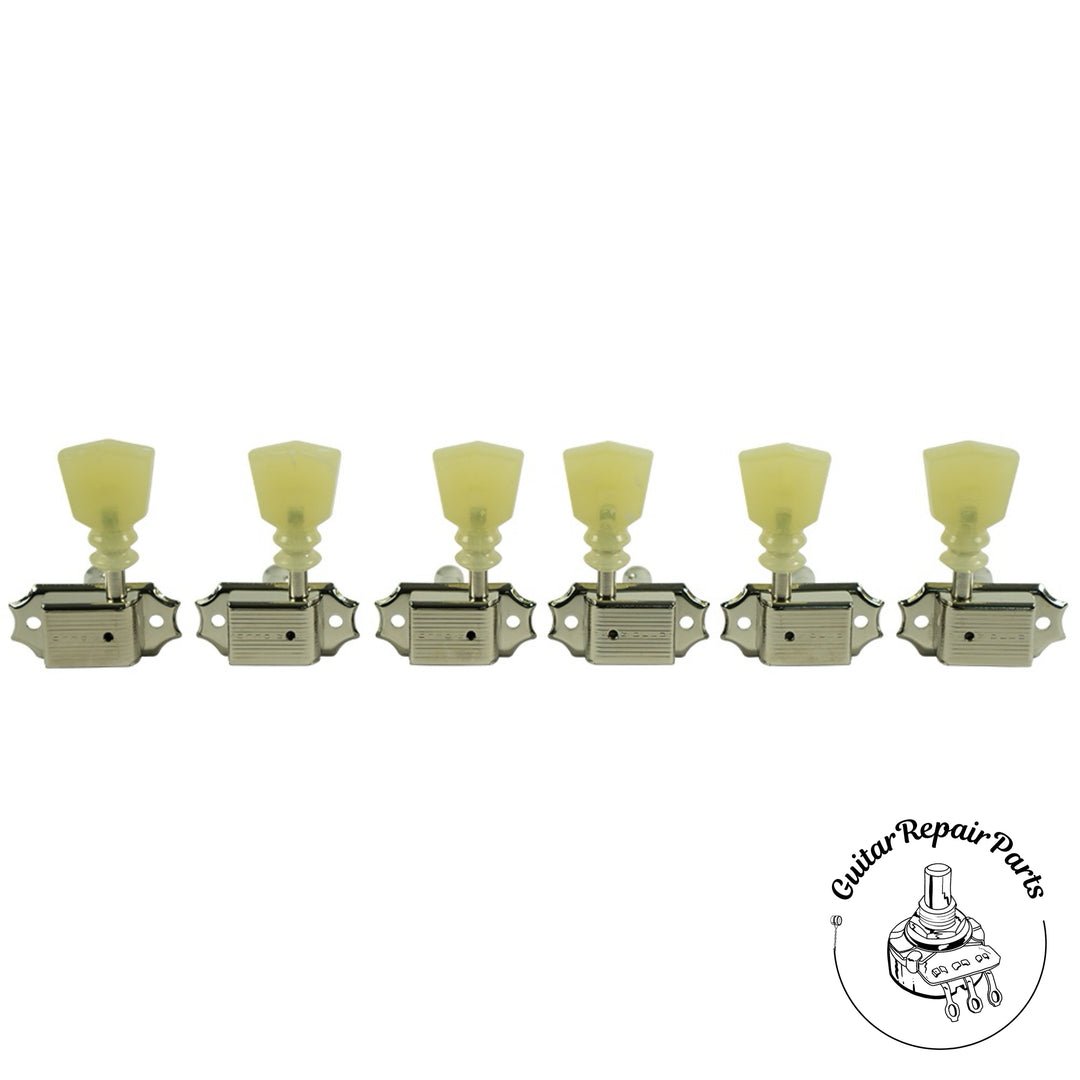

This complete Kluson® set of 3 per side tuning machines is available with green keystone plastic buttons and a high quality nickel plating with an improved 15:1 gear ratio for more stable and accurate tuning. The housing and button type are period correct for a variety of production dates.

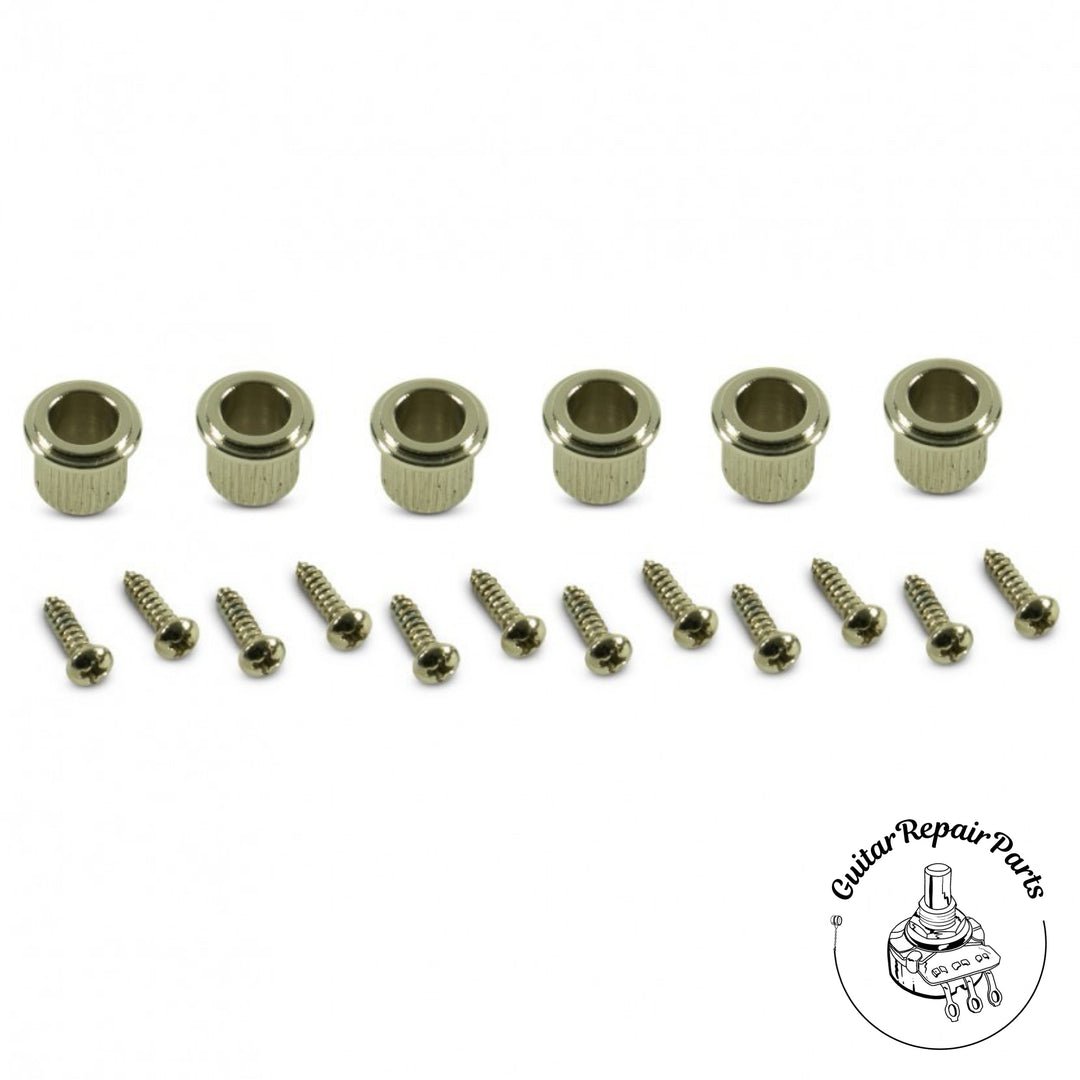

This set comes complete with both bass and treble side tuning machines, 8.8mm O.D. vintage press-in bushings with 1/4 inch I.D. and mounting screws for installation.

Kluson SKU: KD-3-NPKDRSL

• Gear ratio: 15:1

• String Post length: 1 inch

• String Post Diameter: 1/4 inch

• Material: Stamped Steel

• Housing Stamp: Single-Line
• Button Type: Double-Ring Keystone

• 1960 - 1964 Gibson® ES-175
• 1960 - 1964 Gibson® ES-335
• 1960 Gibson® Les Paul Standard
• 1960 - 1963 Gibson® Les Paul / SG Standard
• 1963 - 1964 Gibson SG Standard
• 1960 - 1964 Gibson® EDS-1275 Double 12/6 (3 sets needed)
• 1960 - 1964 Gibson® EMS-1235 Double Mandolin/Guitar (2 sets needed)
• 1962 - 1964 Gibson EBS Double Bass (6 string guitar / 4 string bass) 1 set needed for guitar side)
• 1960 - 1962 Gibson® Flying "V" (made from left over stock from the original 1958 - 1959 "V"'s & shipped with nickel parts)
• 1961 - 1964 Gibson® Barney Kessel Regular
• 1960 - 1964 Gibson® J-160E
• 1960 - 1964 Gibson® Tal Farlow (very limited application - most had Kluson Supers)
• 1960 - 1964 Epiphone® Broadway
• 1960 - 1964 Epiphone® Howard Roberts Standard
• 1960 - 1964 Epiphone® Riviera (limited application)

Professional installation is strongly recommended. Improper installation may result in damage to the product and/or instrument.
