The Kluson® Revolution H-Mount 19:1 high ratio tuning machine. A traditional 6 in line footprint with contemporary sealed diecast housing. The vintage outline, metal oval button and pinstripes pay tribute to Kluson® heritage while the stylized one-piece housing encloses the features that modern guitarist demand. A 19:1 high gear ratio guarantees silky smooth operation and fine tuning stability with no backlash.
These state of the art tuning machines are designed to retrofit die-cast tuning machines with a hex head (bolt) bushing, traditional Kluson® 6 in line mounting pattern and modern 25/64 inch peghole.
Newly upgraded with staggered post heights. Staggered posts negate the need for a traditional string tree. By eliminating the string tree, the break point created on the string before the nut is also removed; increasing string life, resonance, and tuning stability.

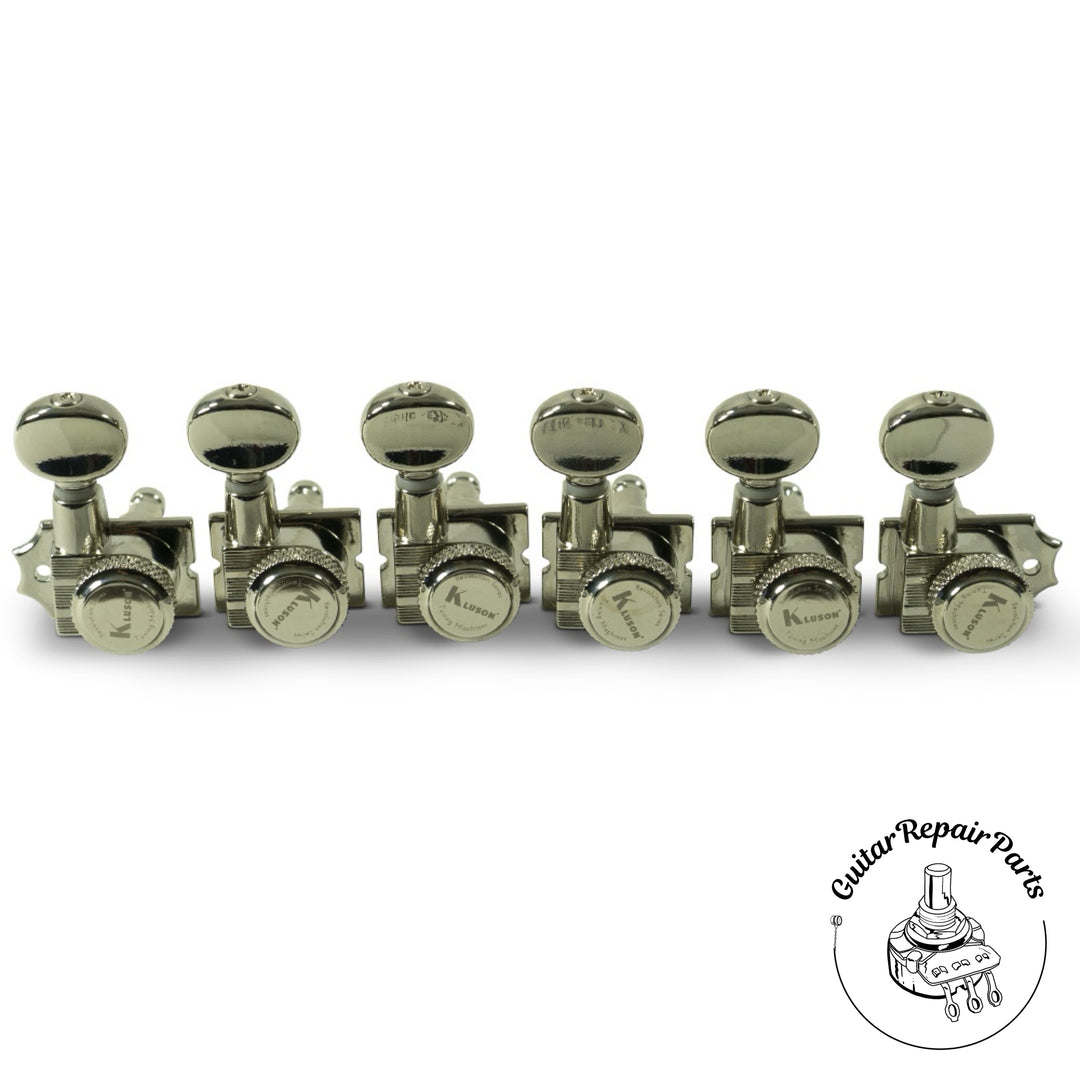

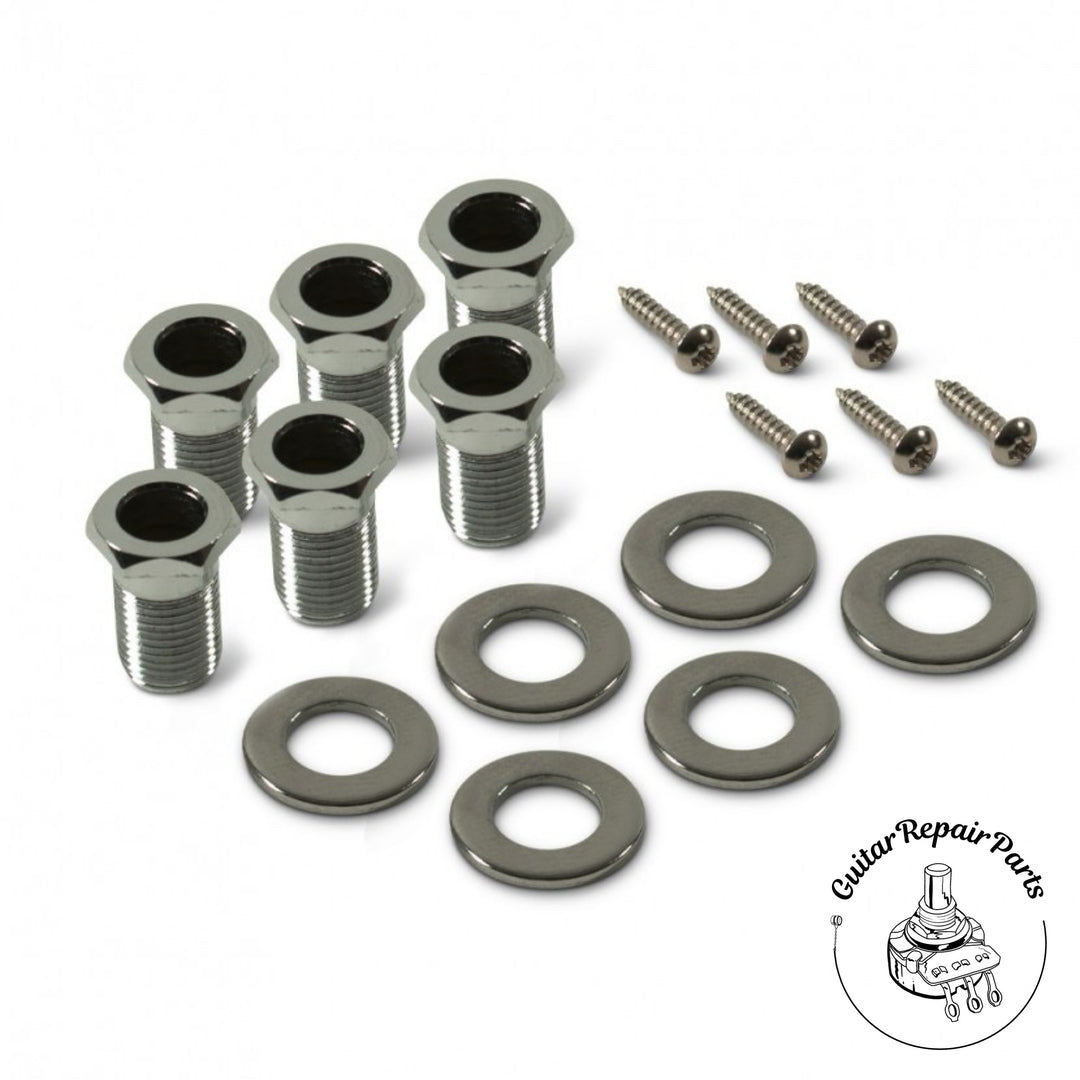

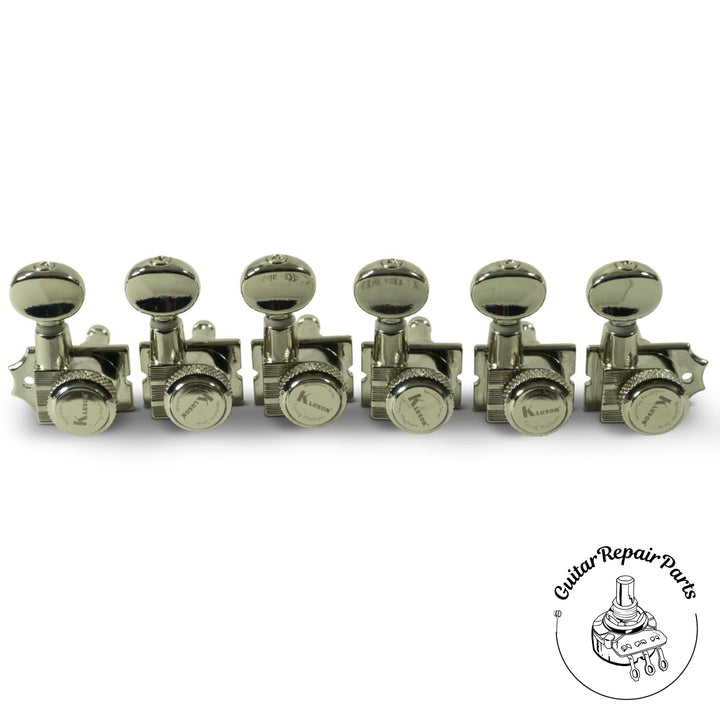

Includes 6 in line tuning machine set for right handed instruments and all mounting hardware.
Kluson SKU: KRHL-6BX-N
Specifications:
- Staggered string post heights: (2) 18mm, (2) 19mm, (2) 20mm
- 6mm string post diameter
- 10mm collared bushing O.D.
Professional installation is strongly recommended. Improper installation may result in damage to the product and/or instrument.
