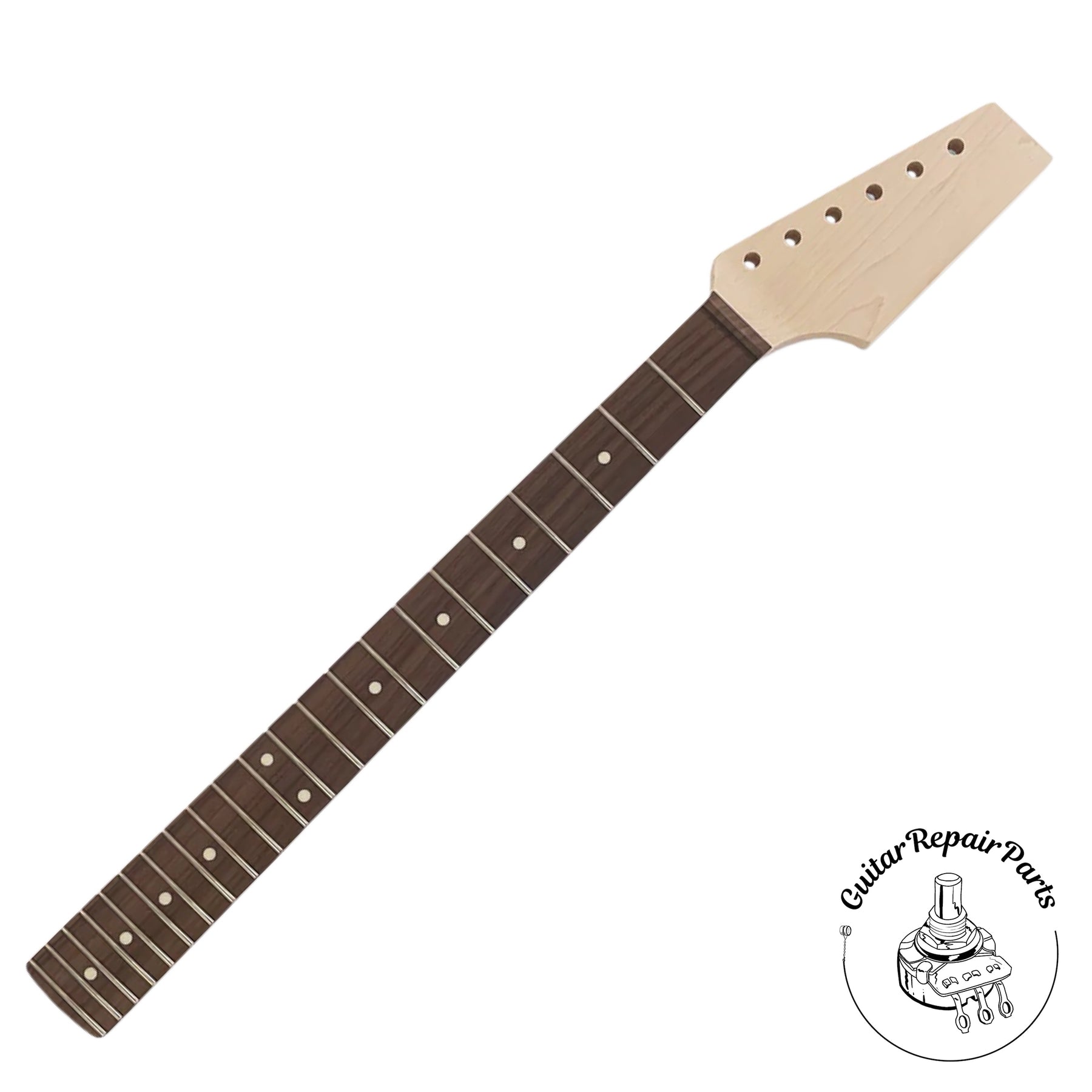

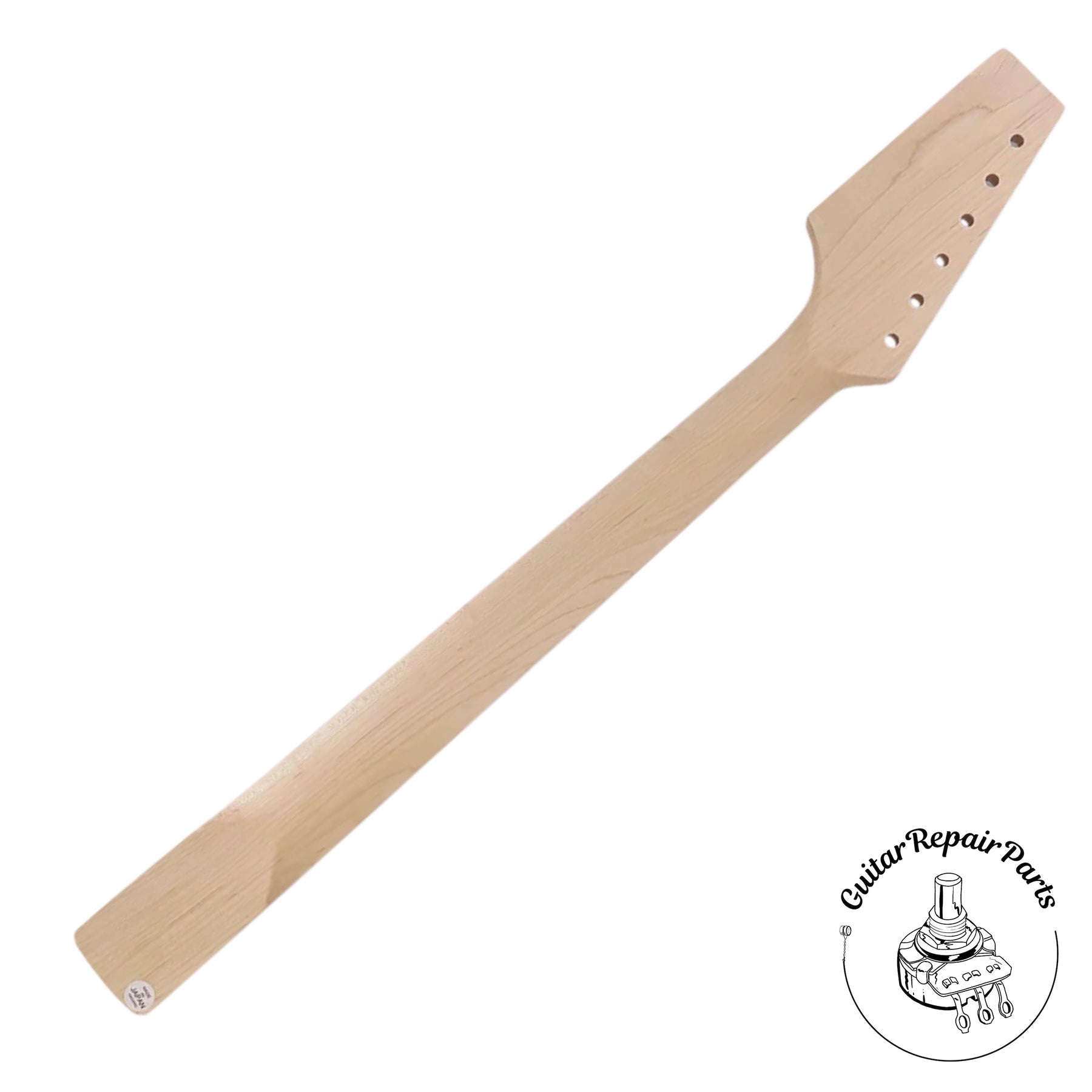

Allparts PHR-1 22 offers a flatter 12" radius rosewood fretboard, 22 jumbo frets, and comfortable C-shape profile for faster, more precise playing. Pre-drilled for vintage 6 in-line tuners, this paddle head neck takes the guess work out of where to place your tuning keys! Matched with a rounded "S-style" heel profile, the PHM-1 22 is made to to retrofit onto your favorite Stratocaster® body!
Features:
- Scale Length: 25.5"
- Neck Profile Shape: C
- Frets: 22 Jumbo frets (0.114" x 0.055")
- Wood: Maple with rosewood fretboard
- Finish: None/Unfinished
- Fretboard Radius: 12"
- Inlays: White fretboard and side marker dots
- Nut Width: 1-5/8"
- Heel Width: 2-3/16"
- Heel Profile: Round
- Tuning Peg Holes: Vintage 2-step hole
- 0.34" (8.5mm) bushing-hole diameter
- 0.25" (6.5mm) post-hole diameter

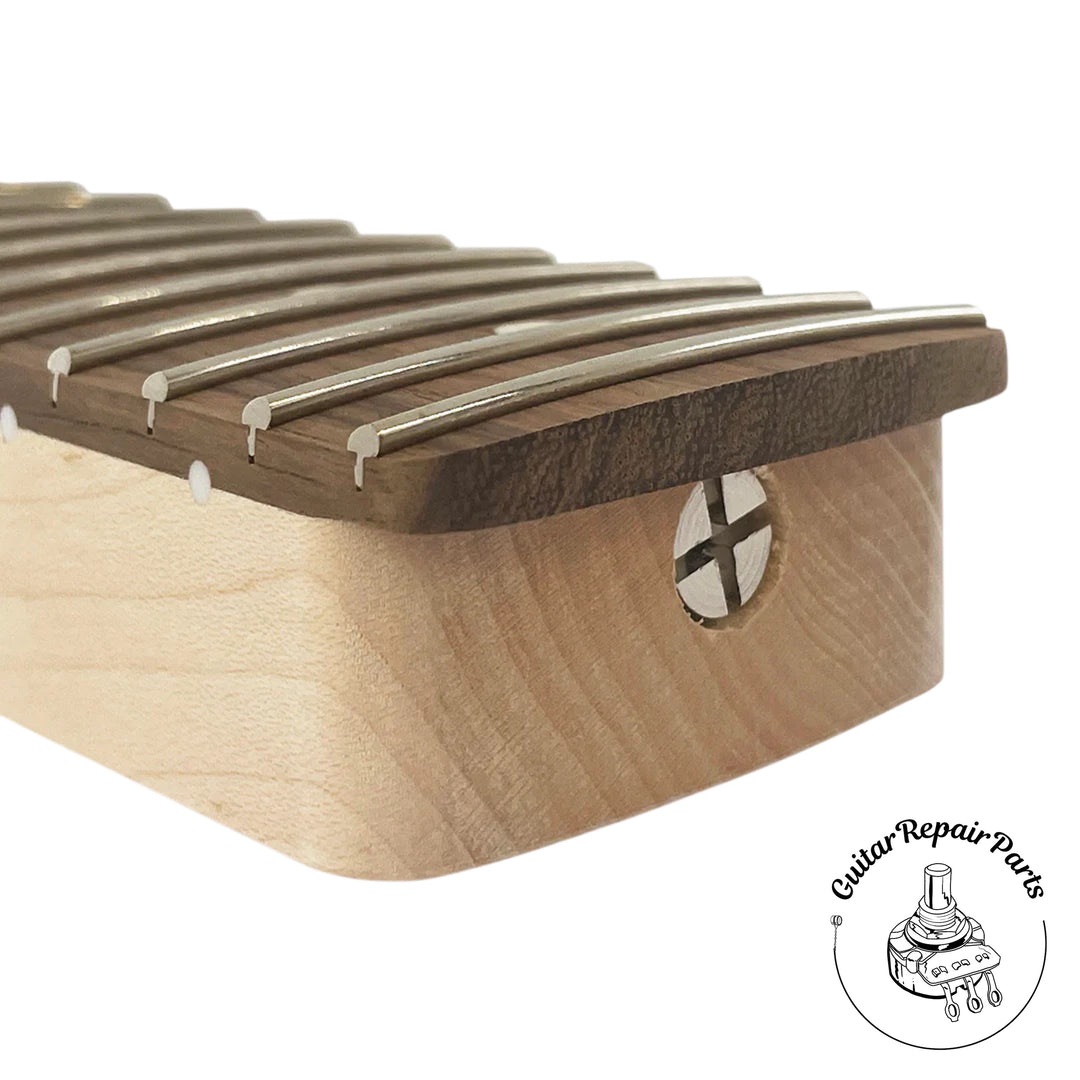

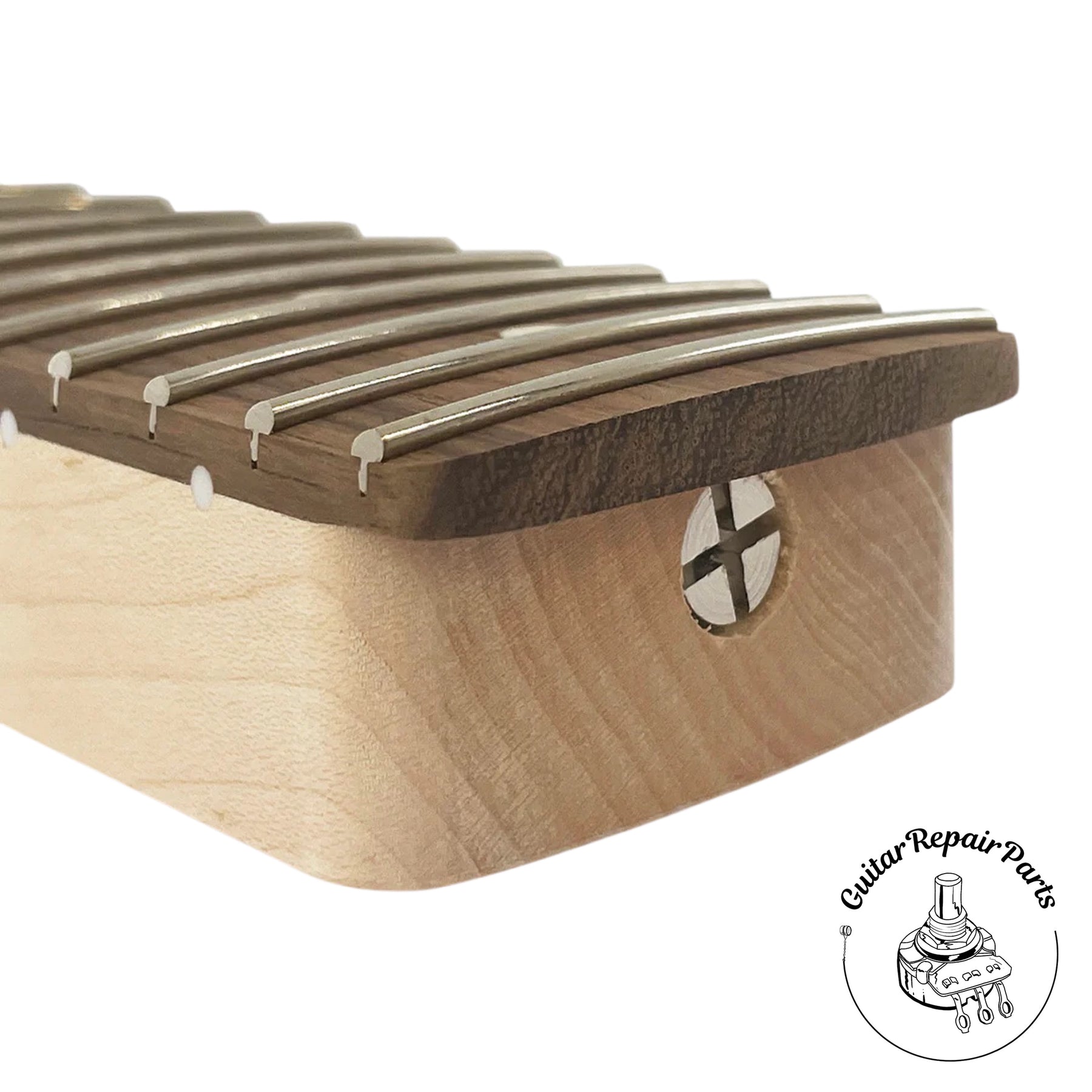

- Truss Rod Adjustment Location: Heel
- Neck Thickness:
- 0.85" at first fret
- 0.95" at twelfth fret
- Made in Japan
Allparts SKU: PHR-1
Note about wooden products: Wood is an organic material. Each piece is different and may not have a uniform color or density. It is liable to have striations and discolorations. All necks may require fret leveling and polish. This is normal and not a defect. To protect against the effects of moisture, we recommend sealing unfinished necks prior to installation.
Professional installation is strongly recommended. Improper installation may result in damage to the product and/or instrument.
