CTS No-Load 500K Potentiometer, Dimpled, 3/8" Bushing, Short Split-Shaft
CTS No-Load 500K Potentiometer, Dimpled, 3/8" Bushing, Short Split-Shaft
CTS No-Load 500K Potentiometer, Dimpled, 3/8" Bushing, Short Split-Shaft
CTS No-Load 500K Potentiometer, Dimpled, 3/8" Bushing, Short Split-Shaft

CTS No-Load 500K Potentiometer, Dimpled, 3/8" Bushing, Short Split-Shaft

Price
Save $-6.50
/
  • Fast, free, shipping on orders of $99 or more
  • 30 Day Return Policy
  • In stock, ready to ship
  • Backordered, shipping soon
Shipping calculated at checkout.

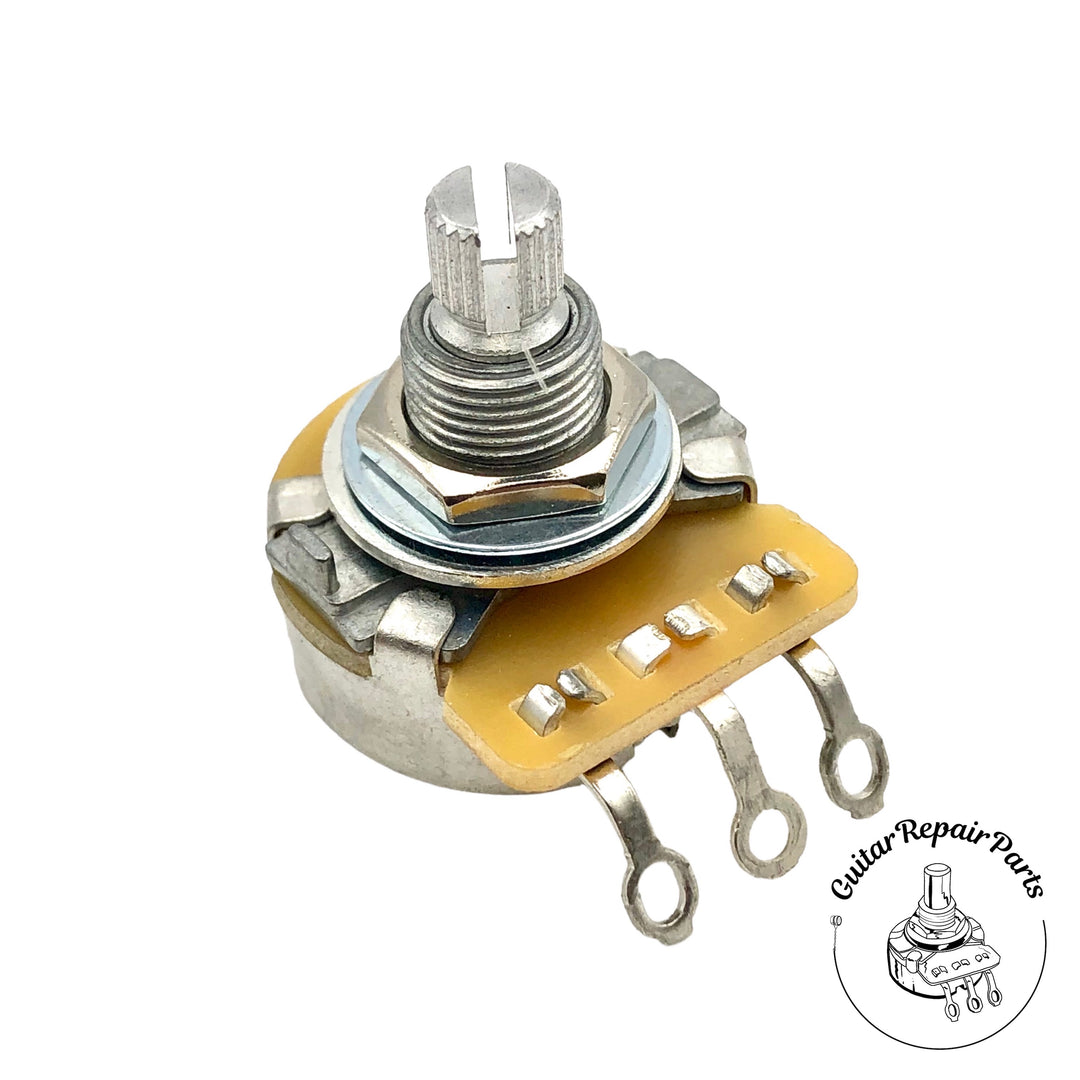

CTS No-Load 500K ohm tone pot, Audio Taper, split, knurled shaft, with hardware. no detent. The housing features a distinctive indented back that is commonly referred to as "dimpled" or "dished".

A no-load tone pot effectively removes itself from the signal chain when the volume is set to 10. When the tone knob is below 10, it does its job just as intended.

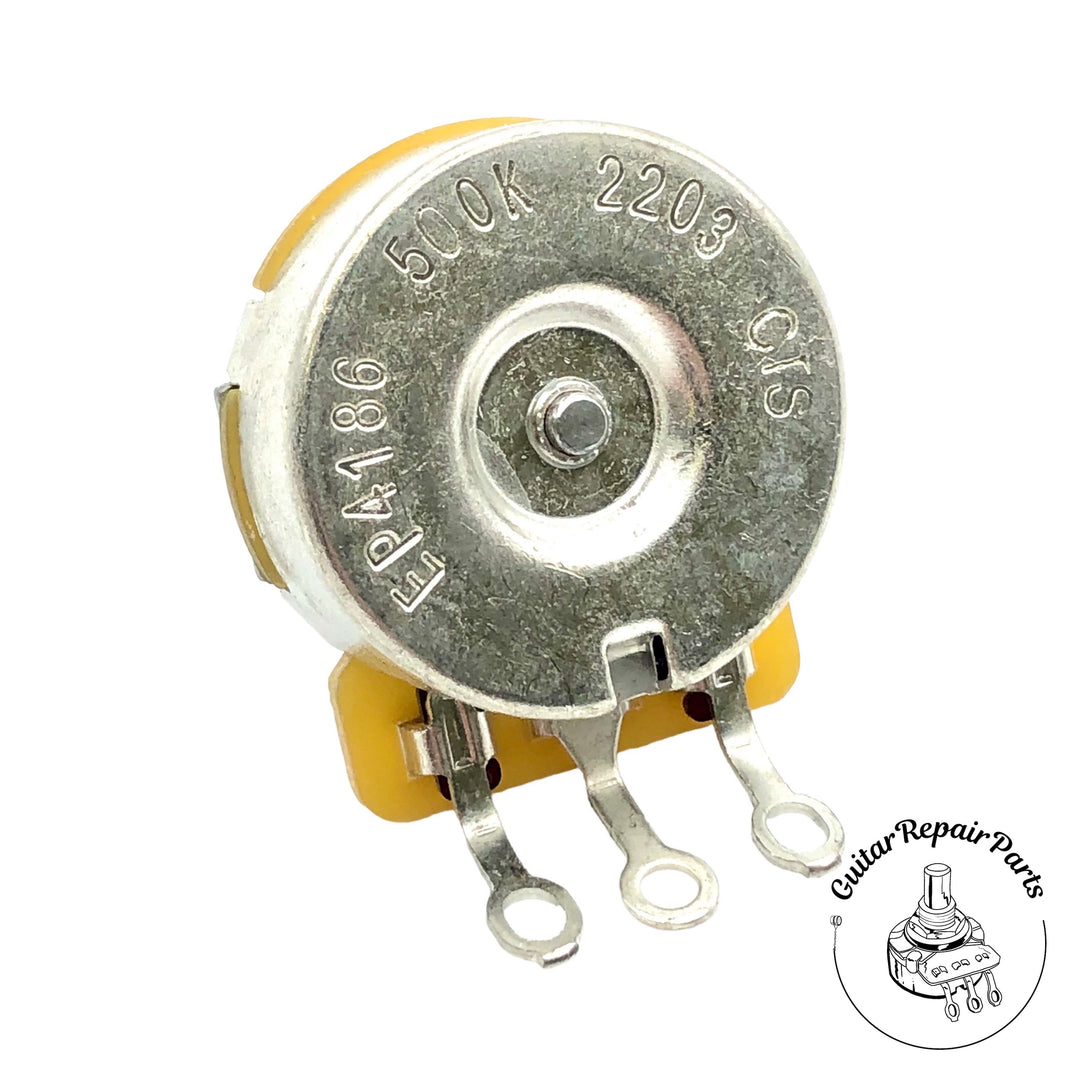

"EP4186" is stamped on the back of the housing.

Specifications

  • Resistance: 500k ohm
  • Bushing Threads: 3/8-32
  • Bushing Length: 3/8"
  • Bushing Material: Aluminum
  • Shaft Syle: Split-Shaft (Fine Spline 24 Tooth)
  • Shaft Length: 1/4"
  • Shaft Material: Aluminum
  • Tolerance: +/- 10%

Note: Recommended for tone control or pickup blender purposes only. Not suitable for use as a volume control.

Professional installation is strongly recommended. Improper installation may result in damage to the product and/or instrument.
