Bourns No-Load 500K Potentiometer, w. Detent, Split-Shaft
Bourns No-Load 500K Potentiometer, w. Detent, Split-Shaft
Bourns No-Load 500K Potentiometer, w. Detent, Split-Shaft
Bourns No-Load 500K Potentiometer, w. Detent, Split-Shaft

Bourns No-Load 500K Potentiometer, w. Detent, Split-Shaft

Price
Save $-7.99
/
  • Fast, free, shipping on orders of $99 or more
  • 30 Day Return Policy
  • In stock, ready to ship
  • Backordered, shipping soon
Shipping calculated at checkout.

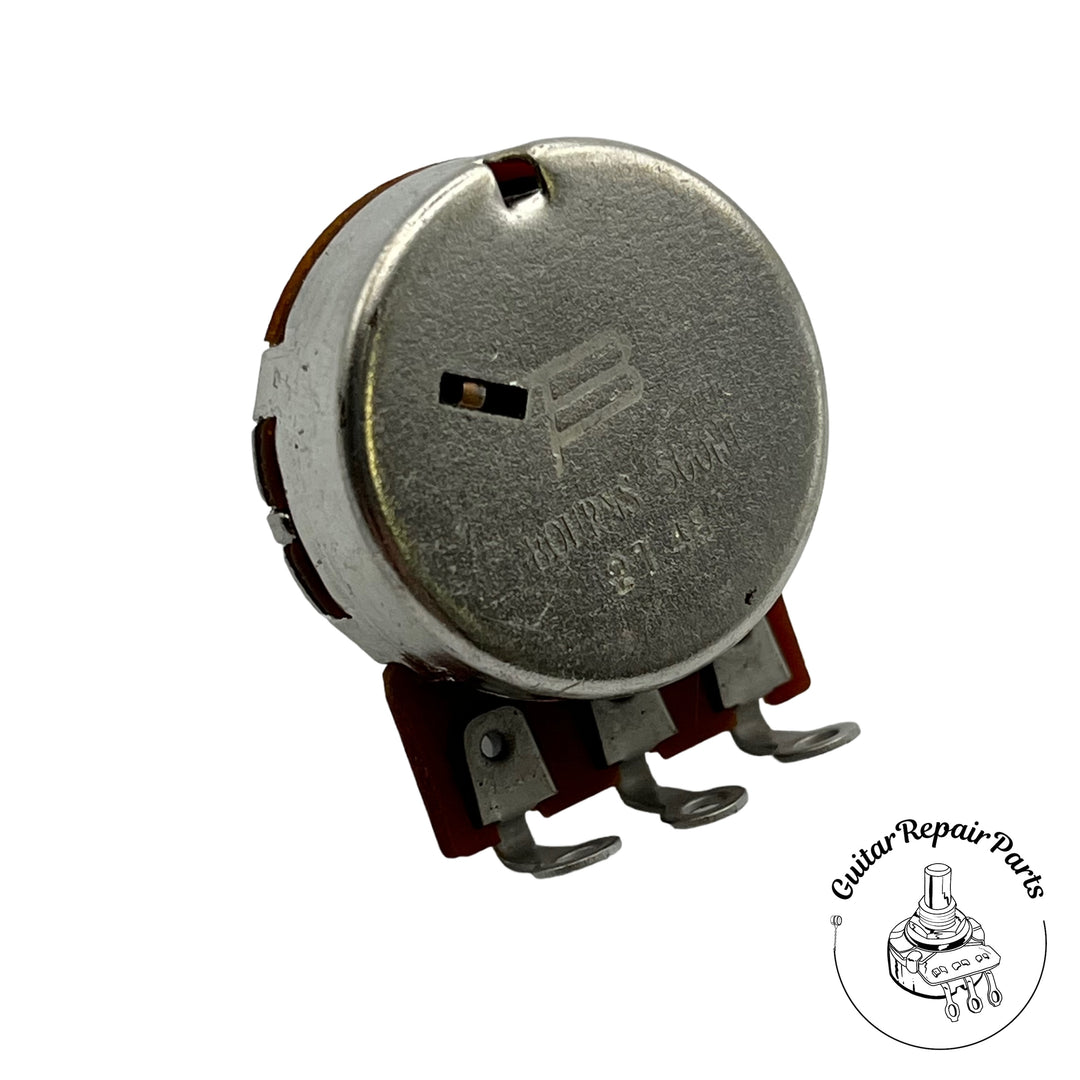

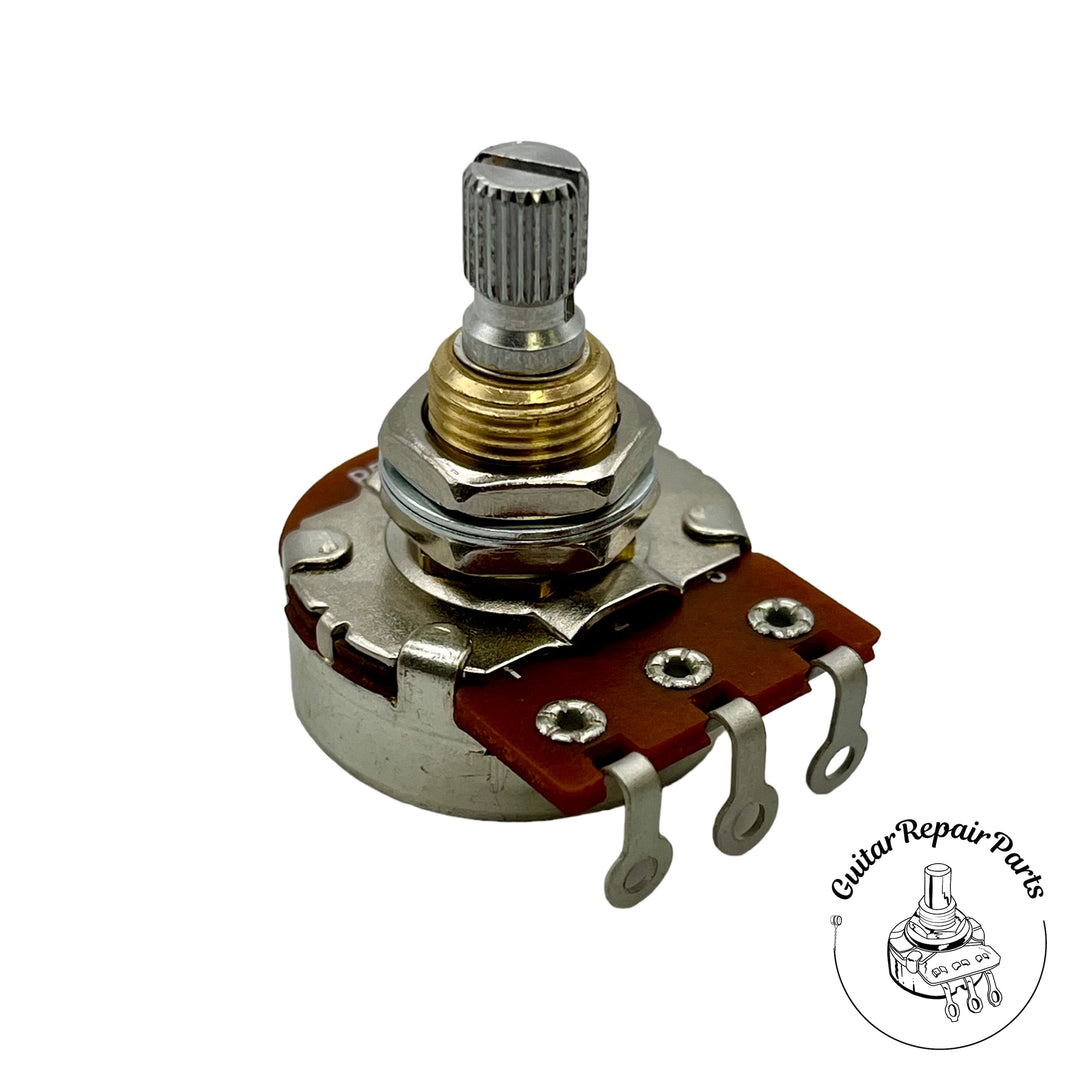

Bourns No-Load 500K ohm tone pot, detented, knurled split-shaft, with hardware.  The housing is stamped "Bourns 500NL" on the back."B500K" is stamped on the wafer.

A no-load tone pot effectively removes itself from the signal chain when the volume is set to 10. When the tone knob is below 10, it does its job just as intended. This pot has a detent so that you can feel when the pot has been engaged.

Specifications

  • Bushing Threads: 3/8-32
  • Bushing Length: 3/8"
  • Bushing Material: Brass
  • Shaft Syle: Split-Shaft (Fine Spline 24 Tooth)
  • Shaft Length: 1/4"
  • Shaft Material: Aluminum
  • Tolerance: +/- 20%

Note: Recommended for tone control or pickup blender purposes only. Not suitable for use as a volume control.

Professional installation is strongly recommended. Improper installation may result in damage to the product and/or instrument.
