Plastic Humbucking Pickup Rings, Oversized Import Mount, Flat Bottom - Black

Plastic Humbucking Pickup Rings, Oversized Import Mount, Flat Bottom - Black

Plastic Humbucking Pickup Rings, Oversized Import Mount, Flat Bottom - Black

Regular price $4.99
  • Fast, free, shipping on orders of $75 or more
  • 30 Day Return Policy
  • Low stock - 2 items left
  • Backordered, shipping soon
Shipping calculated at checkout.

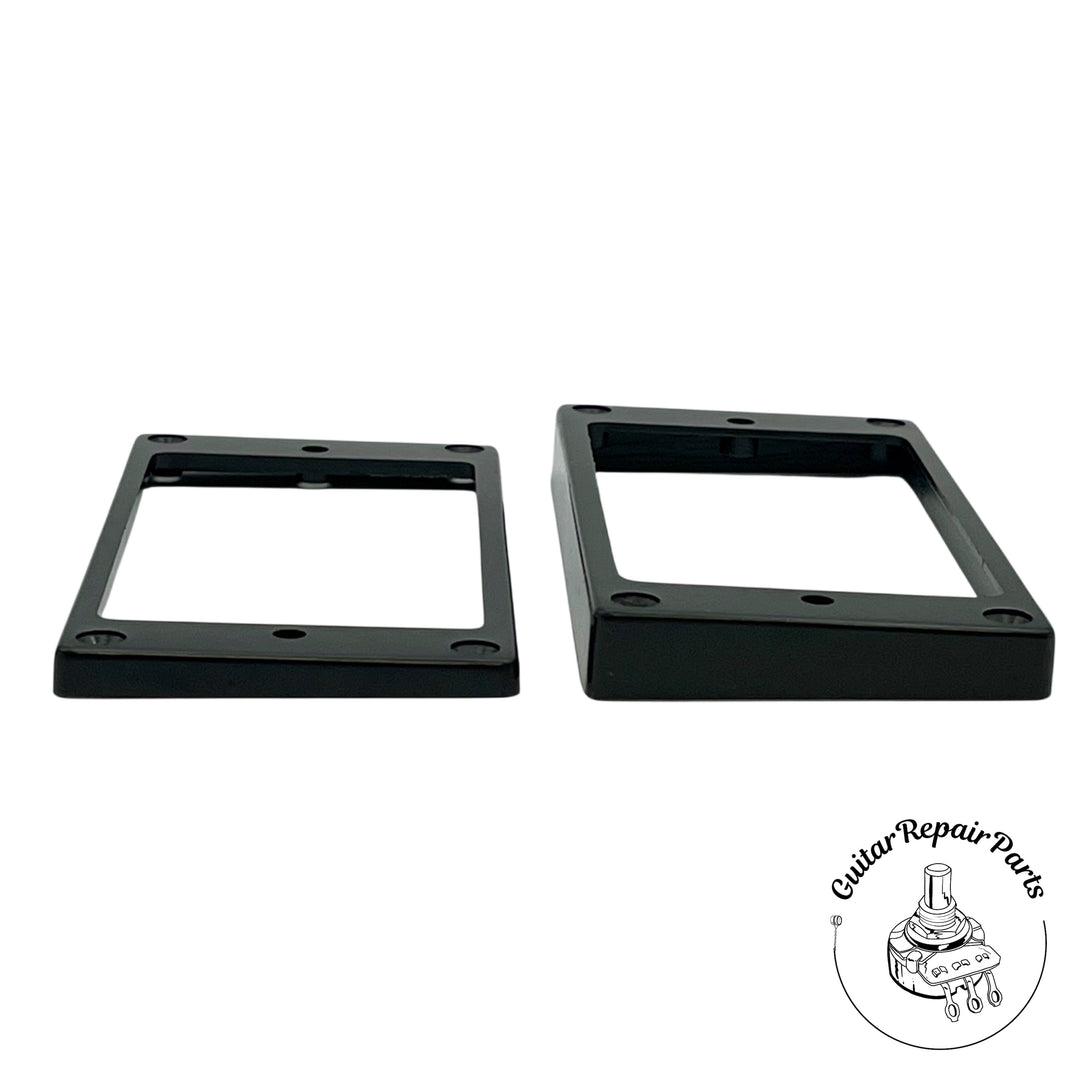

Set of two humbucking pickup rings for neck and bridge. Flat bottom and slanted sides.Two heights: Low for neck position and high for bridge position. Glossy black.

The footprint of these rings is a bit larger than the standard ring; They fit some Epiphone and other import guitars that utilize these dimensions and for which suitable rings are hard to find.

These rings are angled in height. It is typically positioned so that the side closest to bridge is taller than the side closest to the neck or fretboard.

  • Exterior Length: 3.63" (92.25mm)
  • Exterior Width:  1.81" (46mm)
  • Pickup Cutout Length: 2.75" (70mm)
  • Pickup Cutout Width: 1.54" (39mm)
  • Mounting Hole Location Length: 3.26" (83.0mm)
  • Mounting hole location Width: 1.45" (37.0mm)
  • Pickup Mounting Screw Holes: 3.07" (78mm)
  • Small Ring Height: Tall Side:  0.20" (5.0mm) / Short Side: 0.16" (4.1mm)
  • Tall Ring Height: Tall Side:  0.35" (8.9mm) / Short Side: 0.29" (7.5mm)

Allparts SKU: PC-6743-023

Note: This listing includes the mounting ring only. A variety of pickup mounting ring and height adjustment screws are available separately.

Professional installation is strongly recommended. Improper installation may result in damage to the product and/or instrument.
