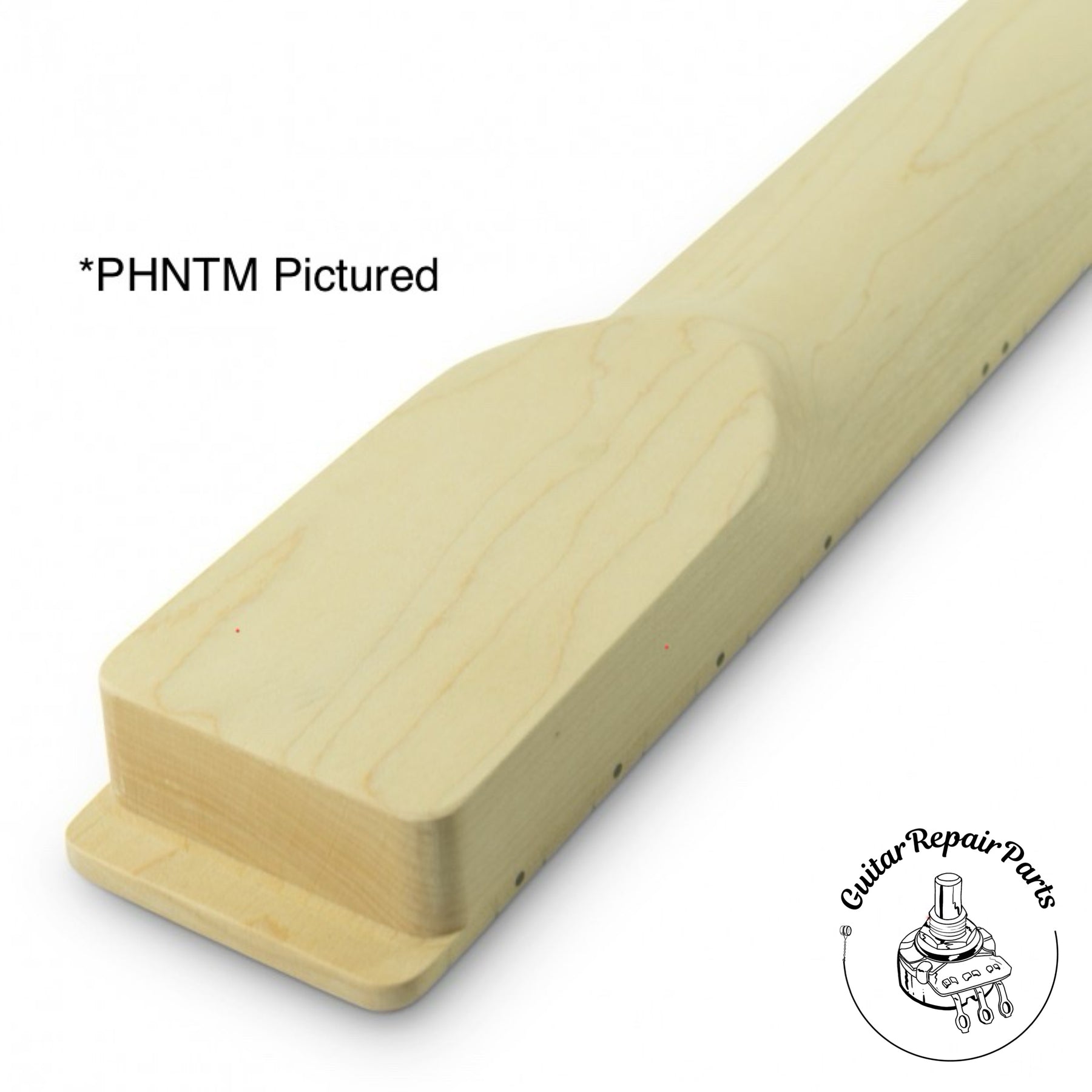

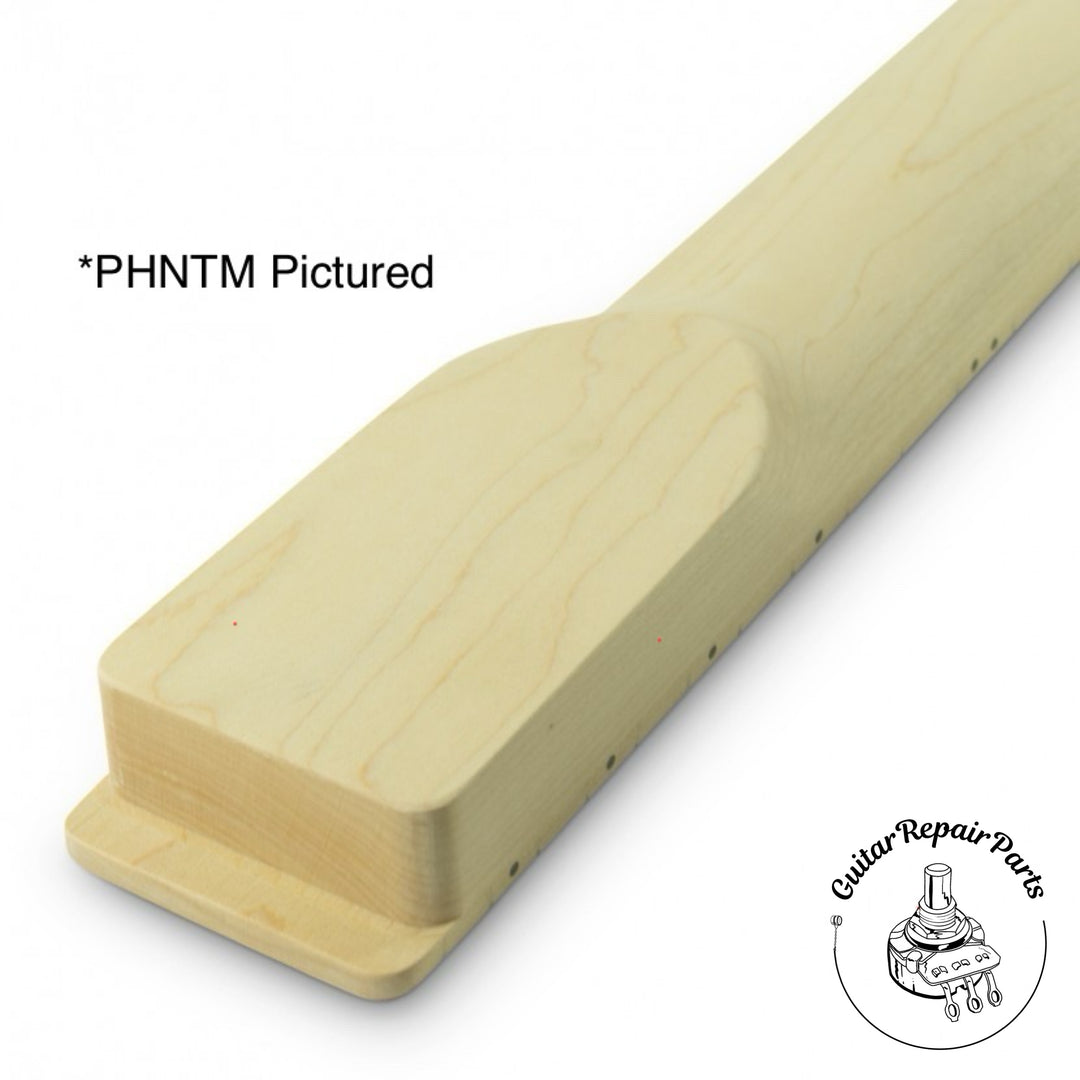

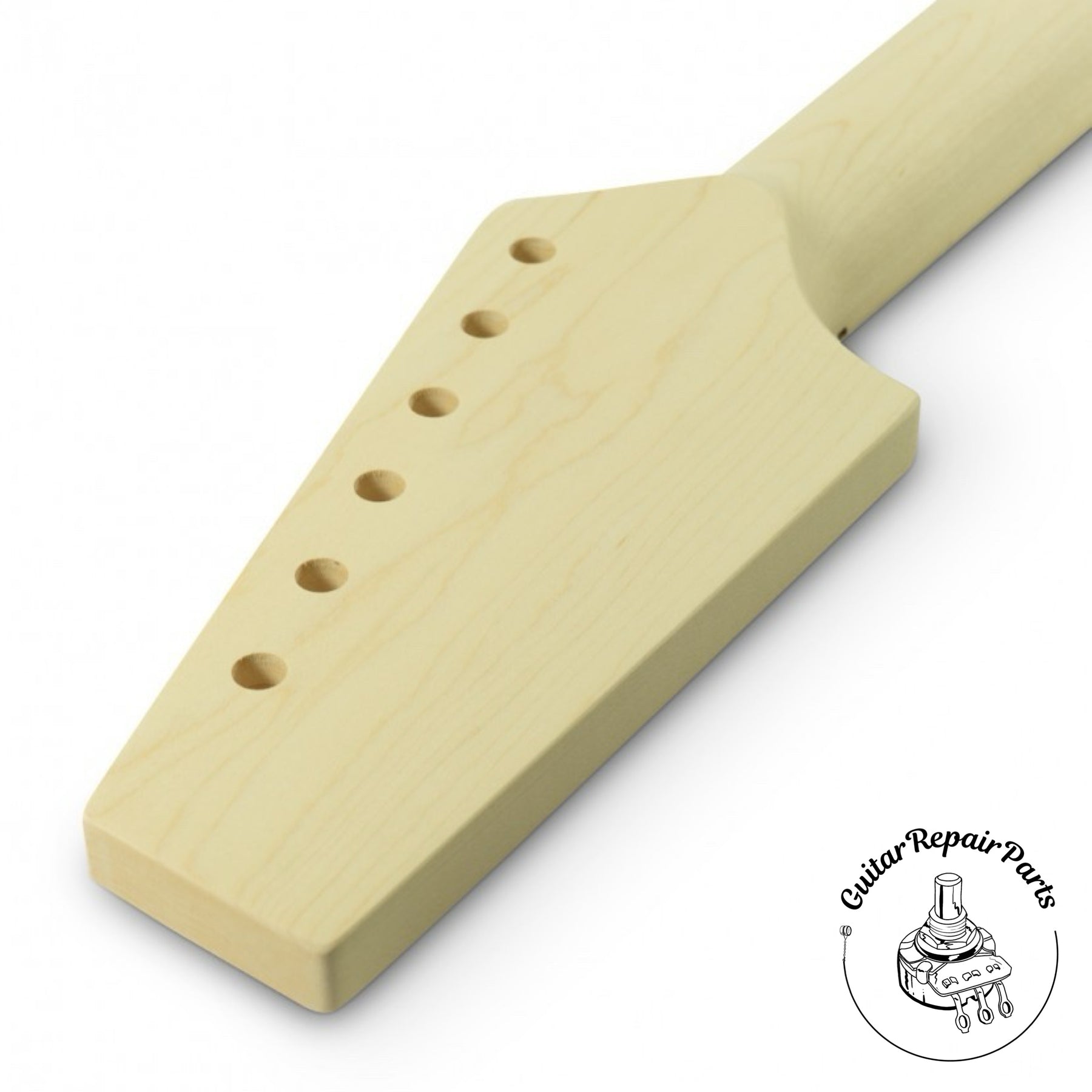

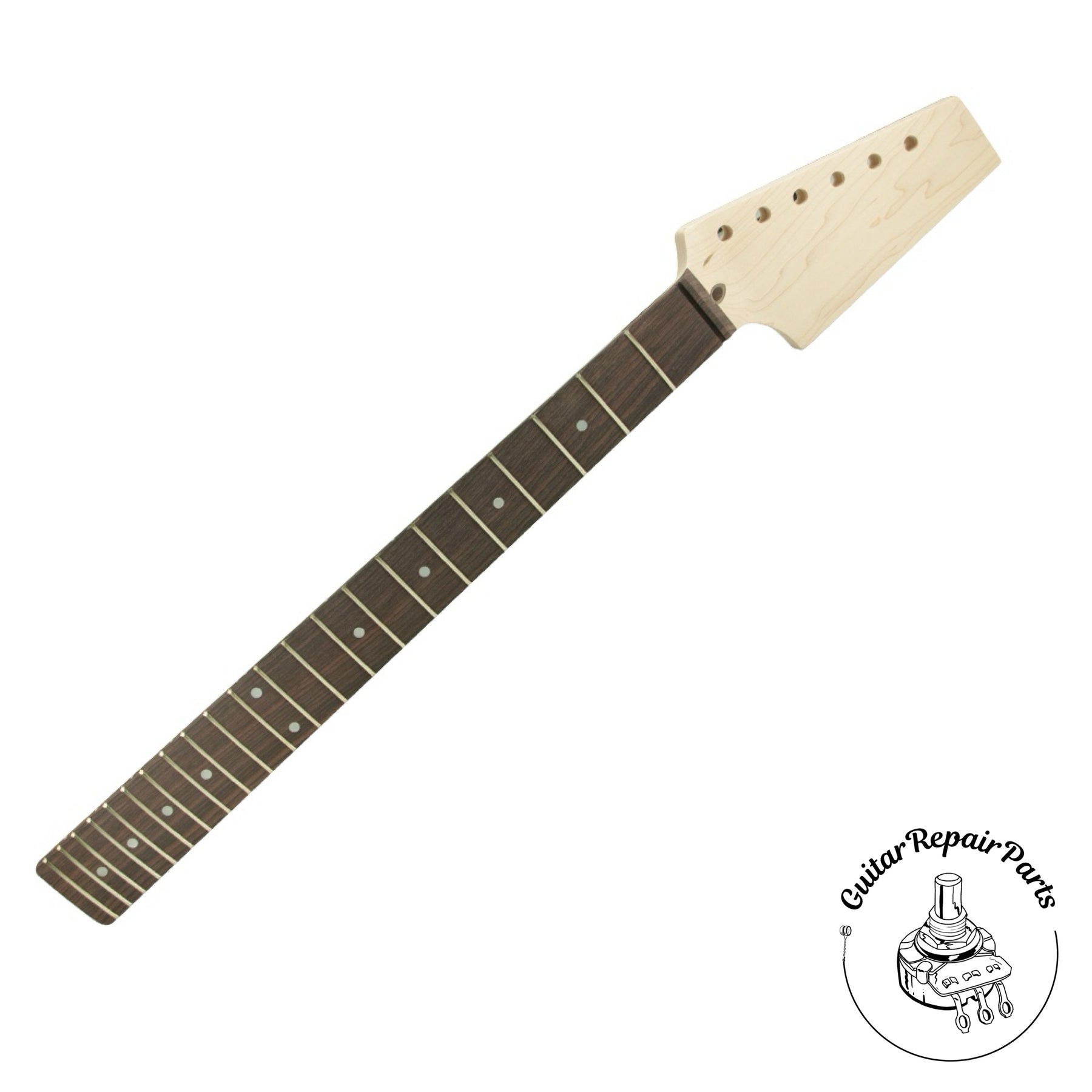

These blank headstock necks have been designed to have the angled side cut with the 6 tuning machine holes pre-drilled to make shaping your own headstock as simple as possible saving you, the builder, valuable time in production. This neck shares heel specs common to USA Fender® Telecaster® specs and will function as a drop in replacement that you can shape yourself or build your own instrument with a custom headstock!
Also Available with maple, Pau Ferro, or ebony fretboards.
Features:
- Scale Length = 25.5
- Fingerboard Radius = 12 in.
- Nut Width = 1 11/16 in.
- Profile Shape = Modern C
- Fret type and count = 6150 Medium - 22 frets
- Tuner peghole size = 21/64 in. (8.8mm)
- Binding = none
- Neck Finish = unfinished
- Truss Rod location = headstock
- Truss Adjustment type = 4mm Hex
- Skunk Stripe = none

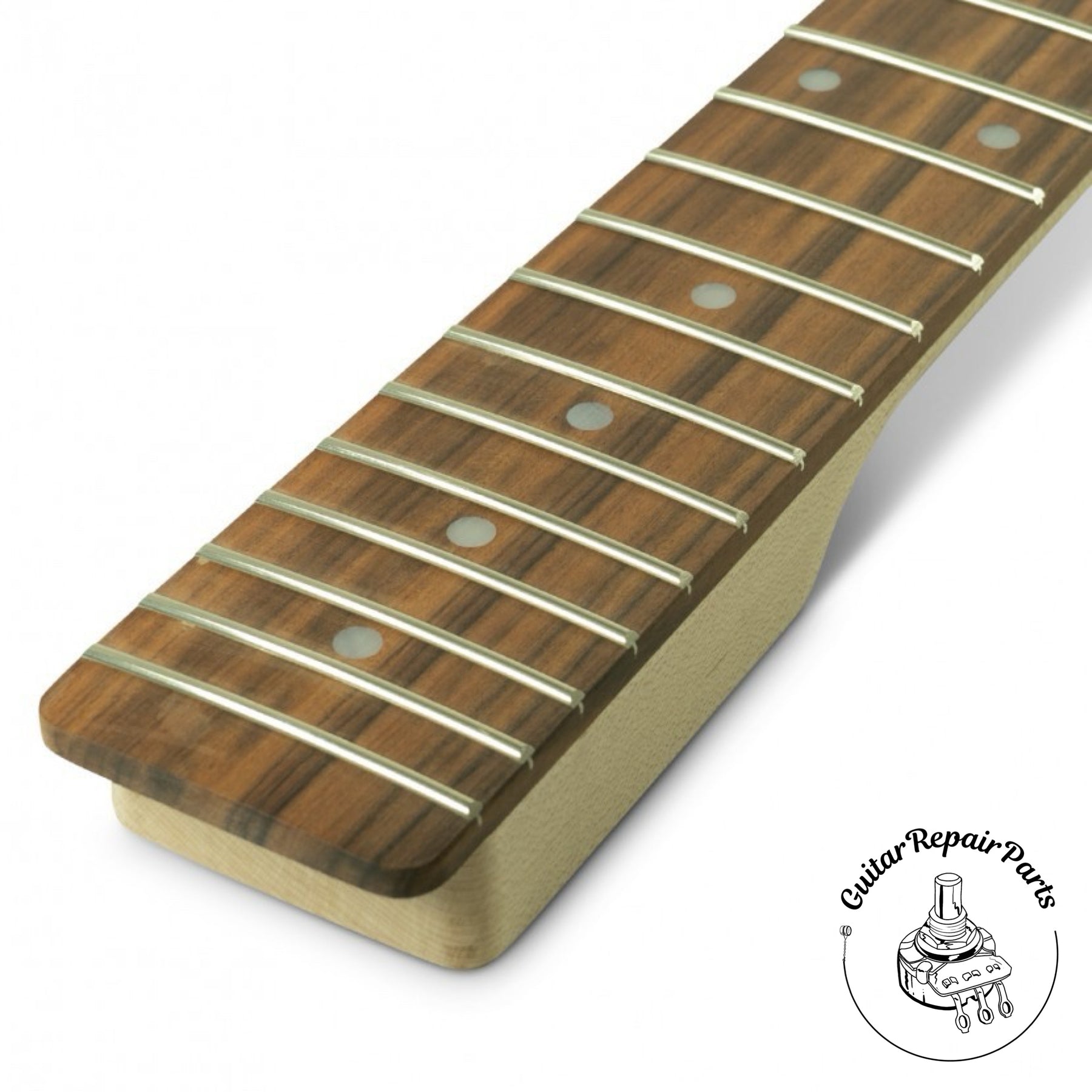

- Neck and Fretboard Type = rosewood on maple
- Heel Type = Standard Telecaster
- Orientation = right hand
- 1st Fret Thickness = 0.86 in.
- 12th Fret Thickness = 0.91 in.
WD SKU: PHNTR
Note: All necks require a final level, crown, and polish and may need to be fine-tuned to your instrument and playing preferences. Neck heels are made to Fender USA dimensions and tolerance, this may not account for neck pocket shrinkage or expansion over time, so some neck pocket modification may be required. Your new neck should be carefully inspected prior to installation and/or modification as necks are rendered non-returnable once altered.
Note about wooden products: Wood is an organic material. Each piece is different and may not have a uniform color or density. It is liable to have striations and discolorations. All necks may require fret leveling and polish. This is normal and not a defect. To protect against the effects of moisture, we recommend sealing unfinished necks prior to installation.
Professional installation is strongly recommended. Improper installation may result in damage to the product and/or instrument.
