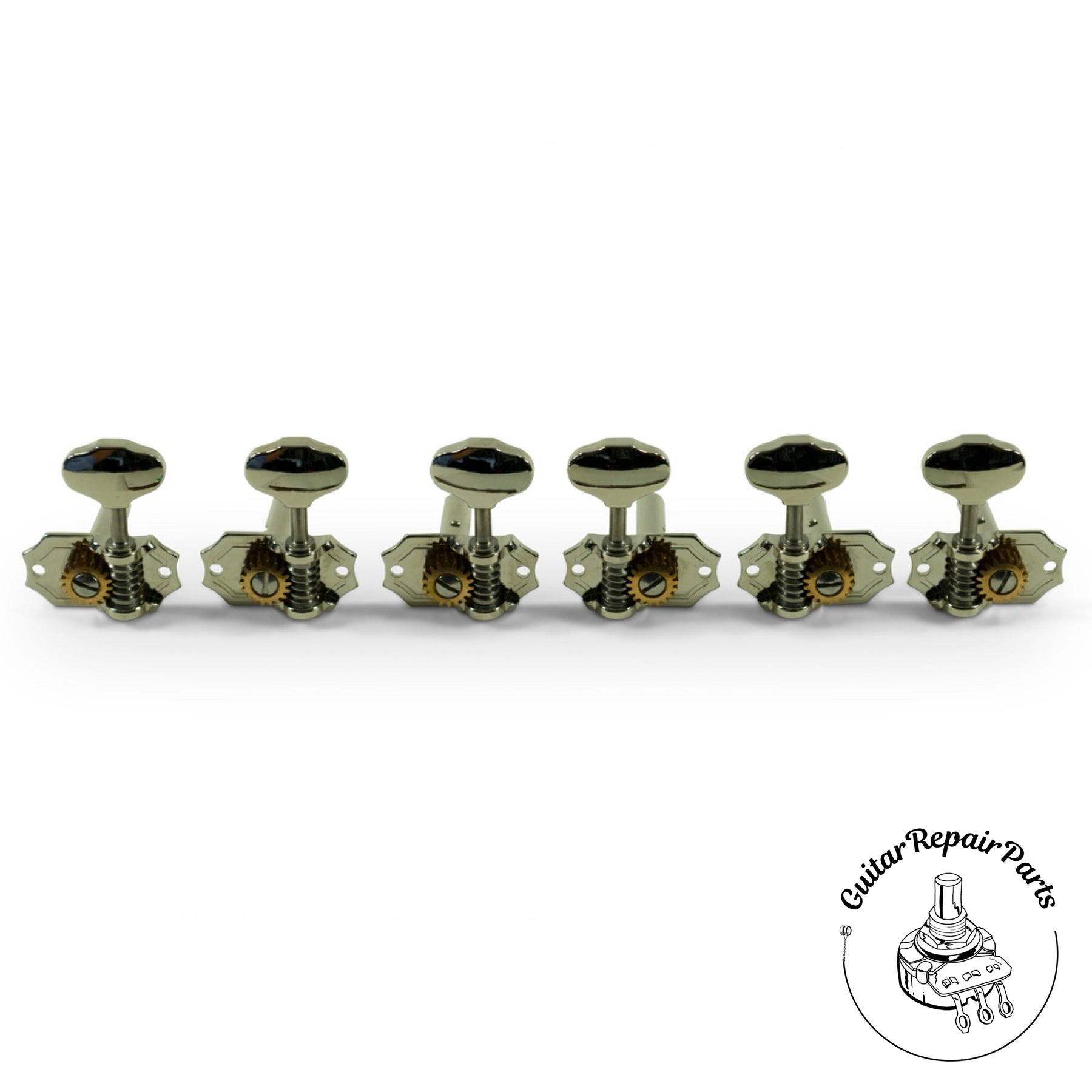

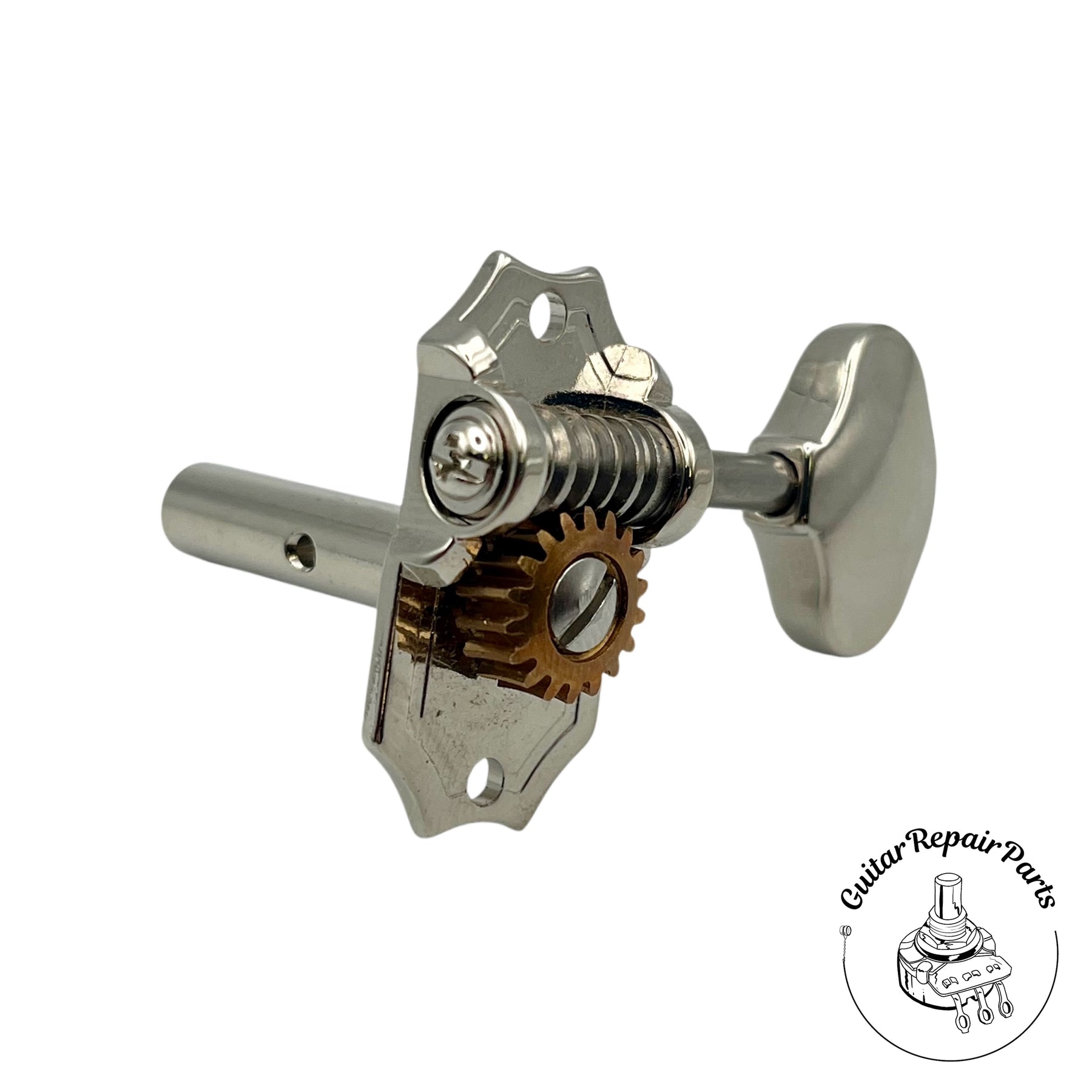

Classic pre-war elegance coupled with state of the art manufacturing and construction to create an exceptional tuning machine. These are designed to replace most contemporary open gear tuning machines such as Grover®, Schaller®, Wilkinson®, Waverly®, and others using a 26 mm center to center mounting hole pattern. They feature a precision diecast base, bronze ring gear, stainless worm gear with close tolerance bushings, and 18:1 gear ratio. For solid headstocks with vertical mount.
Specifications:
- Base Plate material= Zinc Diecast
- Worm Gear material= Stainless Steel
- Ring Gear material= Bronze
- Gear ratio= 18:1
- String Post Orientation= Horizontal for slotted Pegheads
- String Post Overall length= 1 3/32 in. (27.75mm)
- String Post Diameter= 1/4 in. (6.35mm)
- String thru hole location= 1/2 in from baseplate
- Mounting hole spacing= 26mm
- Configuration= 3 + 3
- Mounting hardware included= screws only
Kluson SKU: KP-3H-NOR
Professional installation is strongly recommended. Improper installation may result in damage to the product and/or instrument.
