Kluson KRGLNC-3-GP Revolution G-Mount 3x3 Locking Tuning Machines - Gold
Kluson KRGLNC-3-GP Revolution G-Mount 3x3 Locking Tuning Machines - Gold
Kluson KRGLNC-3-GP Revolution G-Mount 3x3 Locking Tuning Machines - Gold
Kluson KRGLNC-3-GP Revolution G-Mount 3x3 Locking Tuning Machines - Gold
Kluson KRGLNC-3-GP Revolution G-Mount 3x3 Locking Tuning Machines - Gold
Kluson KRGLNC-3-GP Revolution G-Mount 3x3 Locking Tuning Machines - Gold
Kluson KRGLNC-3-GP Revolution G-Mount 3x3 Locking Tuning Machines - Gold
Kluson KRGLNC-3-GP Revolution G-Mount 3x3 Locking Tuning Machines - Gold

Kluson KRGLNC-3-GP Revolution G-Mount 3x3 Locking Tuning Machines - Gold

Price
Save $-176.47
/
  • Available By Special Order Only
  • See Below For Details

Can't find what you need in our store? We may be able to special order current-production parts from our vendors.

Use the contact form below to tell us what you're looking for. Please be as specific as possible and include the manufacturer, part number, model information, or any other relevant details.

We'll review your request and, when possible, provide pricing and availability. Submitting a special-order request does not obligate you to purchase the item. A special order is placed only after you have approved the order and paid the invoice in full.

Terms

  • Payment in full is required before a special order is placed.

  • Special orders are excluded from promotions and discounts, including shipping discounts.

  • Special orders with a total merchandise value under $50 are subject to a $15 special order processing fee. Any applicable fee will be disclosed before payment is requested.

  • Once placed, special orders cannot be modified, cancelled, or returned.

  • Special orders are limited to current-production items and are subject to vendor availability.

  • Lead times can vary considerably. Orders may take several weeks or longer to become available, and any estimated availability or shipping date provided is subject to change.

  • If our vendor is unable to fulfill a special order, we will notify you and issue a full refund to the original form of payment.

  • Shipping restrictions may apply. We may be unable to fulfill special orders for certain products or destinations.



This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

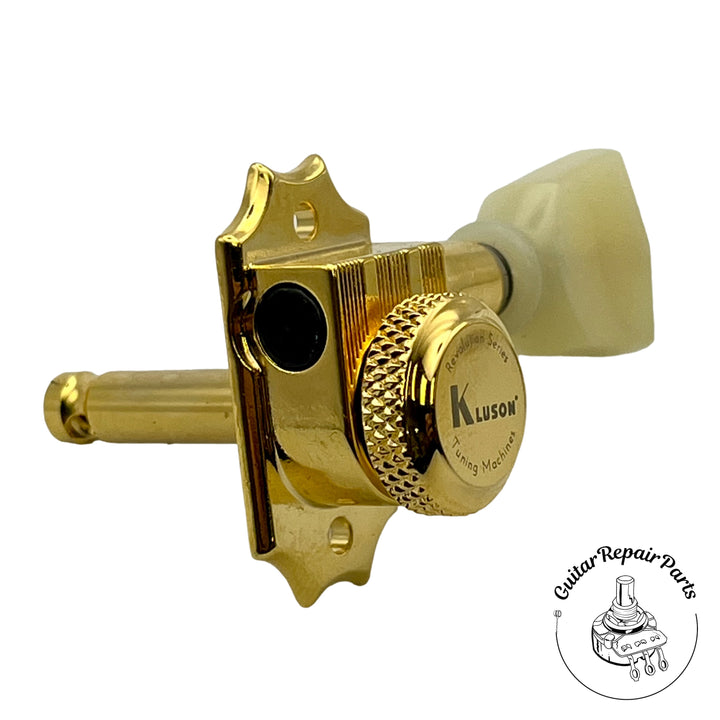

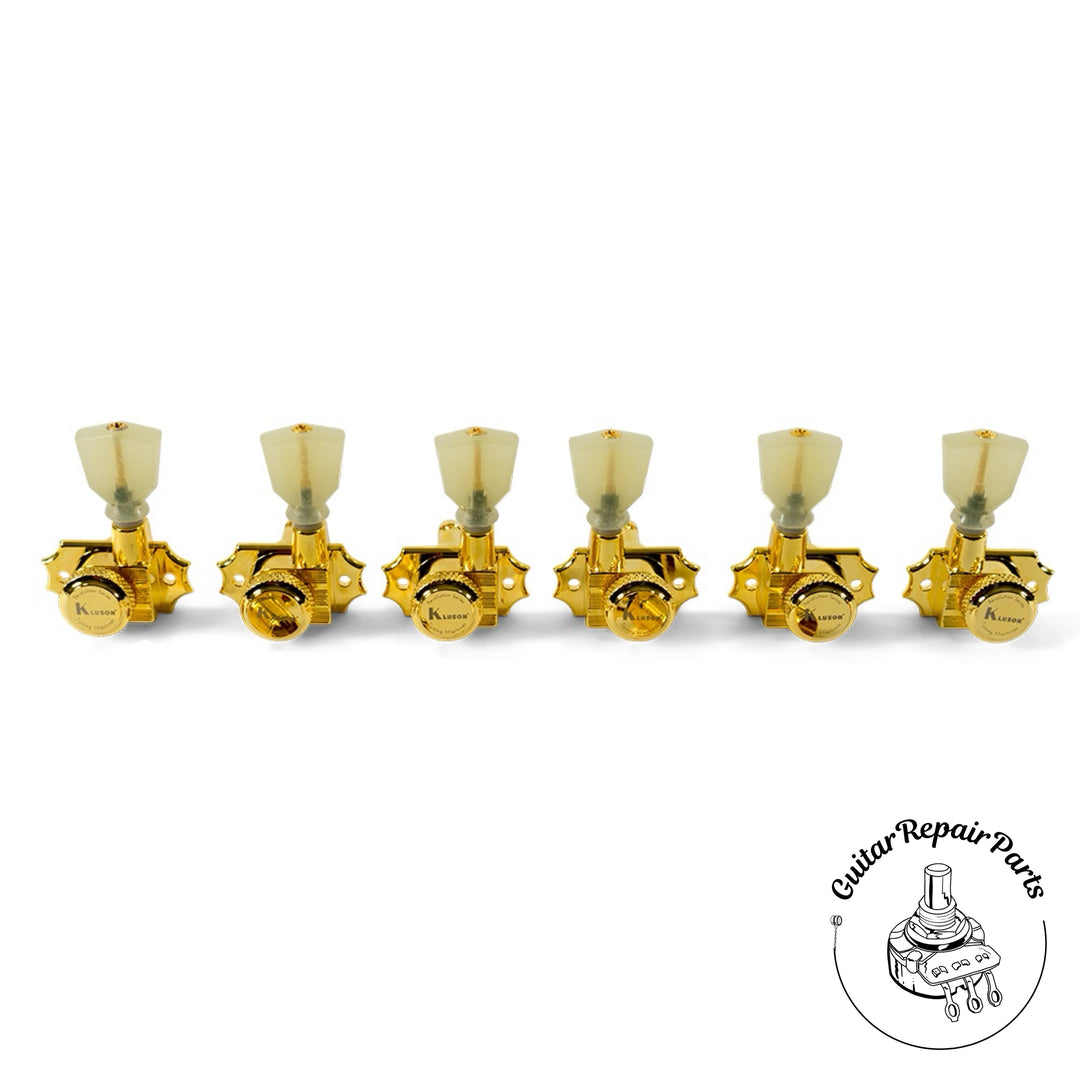

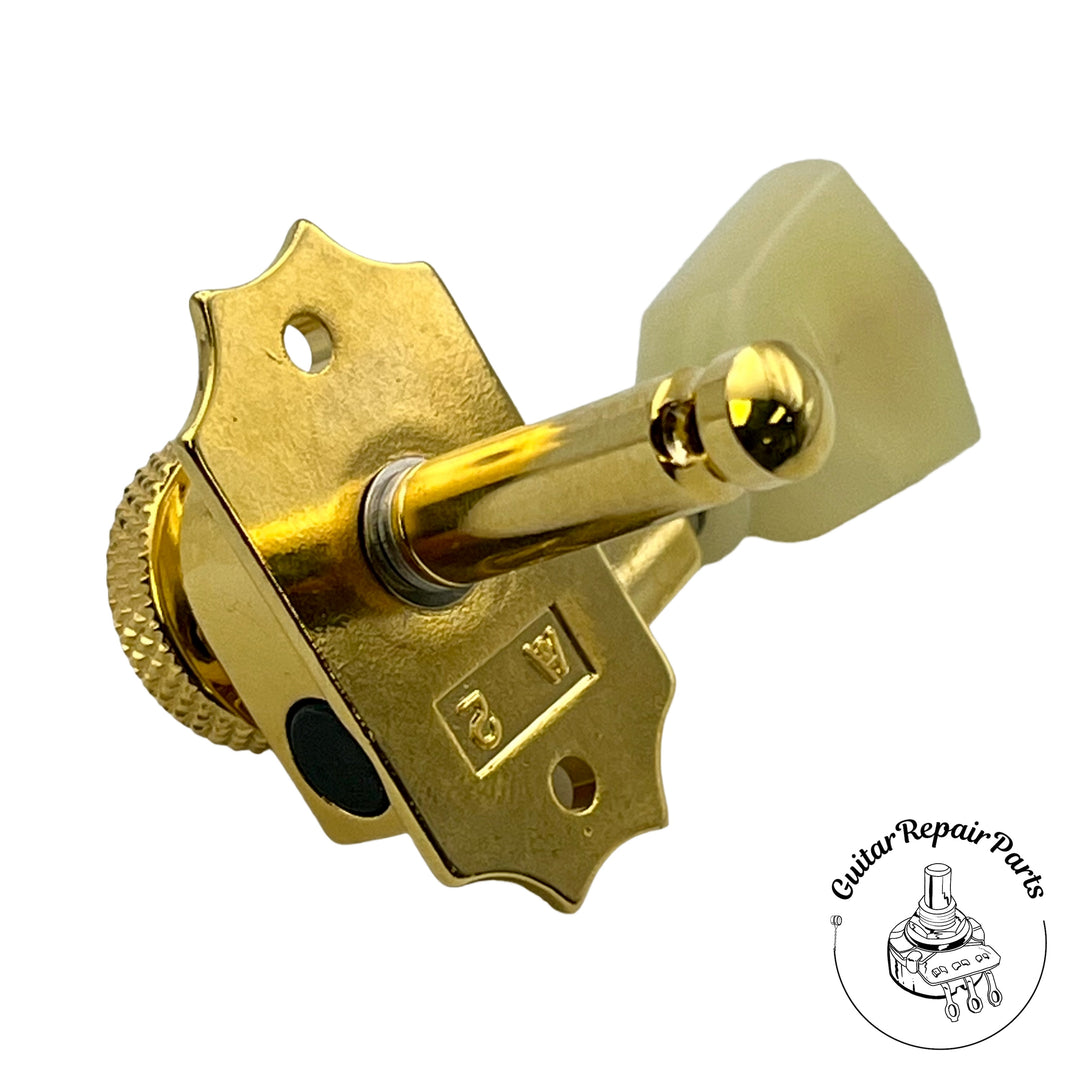

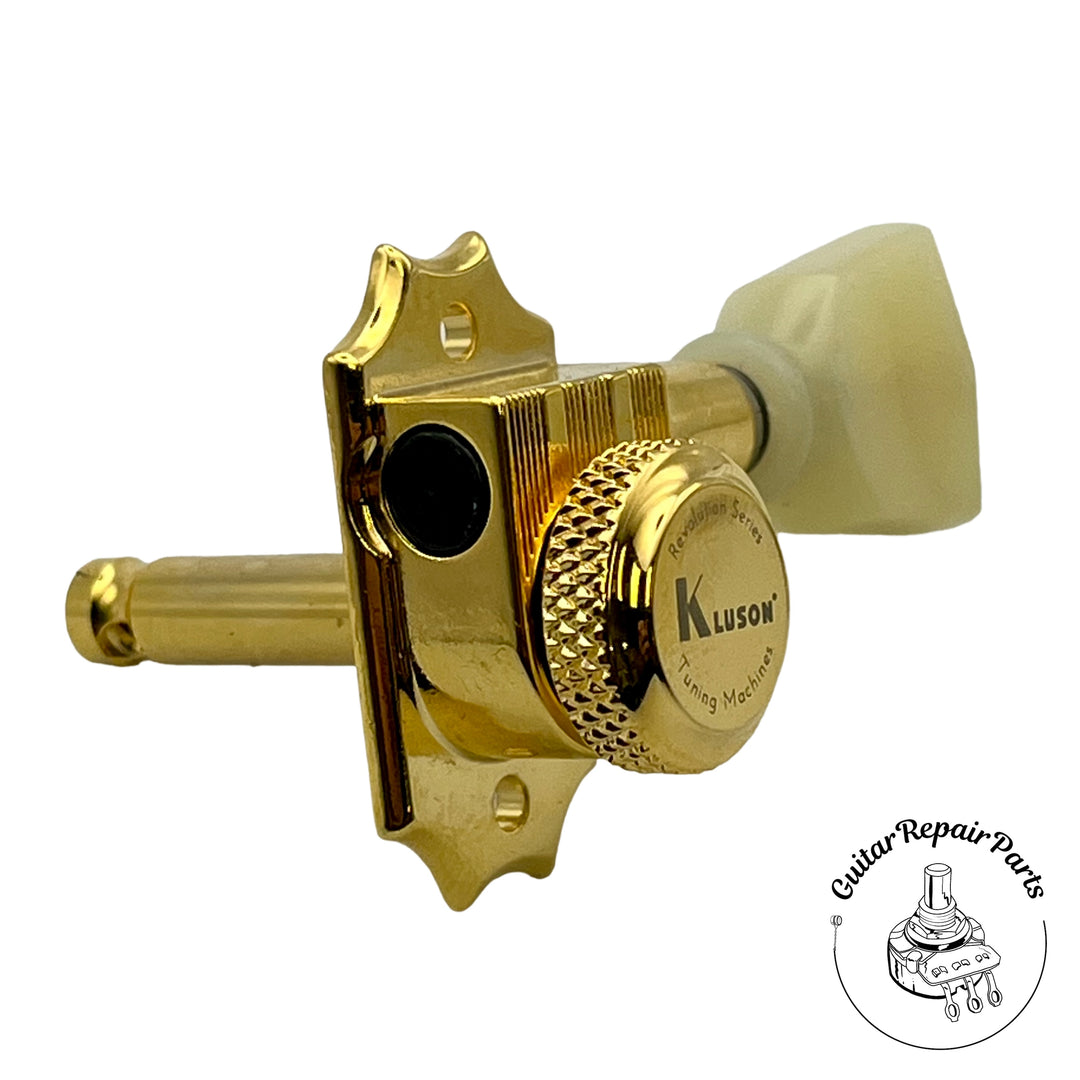

The Kluson® Revolution 19:1 high ratio G-Mount tuning machine. Kluson® has truly introduced a game changer with the traditional footprint and newly designed sealed diecast zinc housing. These state of the art tuning machines are designed to directly retrofit vintage tuning machines with a push-in bushing and adding a rear knob locking mechanism, traditional Kluson® two-screw mounting pattern and vintage 11/32 inch peghole.

The vintage outline, metal keystone button and pin-stripes pay tribute to Kluson® heritage while the brand new housing appearance incorporates all the features the modern guitarist demands. High gear ratio guarantees silky smooth operation, fine tuning stability with no backlash, all in a sealed one-piece housing! All mounting hardware is included.

Specifications

  • Gear ratio= 19:1
  • Gear Type= Steel worm and Brass ring gears
  • Locking mechanism type= Knob on back of housing
  • Bushing Type= Vintage Push-in (Kluson MB65G Bushings)
  • Bushing Outside Diameter = 8.85mm
  • Bushing Inside Diameter = 6mm
  • String Post height= 1 in. (25.5mm) from back of housing
  • String Post Diameter= 6mm
  • String Post Material= Steel
  • Housing Material= Diecast Zinc
  • Button Type= Metal or Translucent Plastic Keystone shape
  • Peg Hole Requirement= 11/32 in. (8.8mm)
  • Mount Pattern= Vintage 3 + 3 Kluson

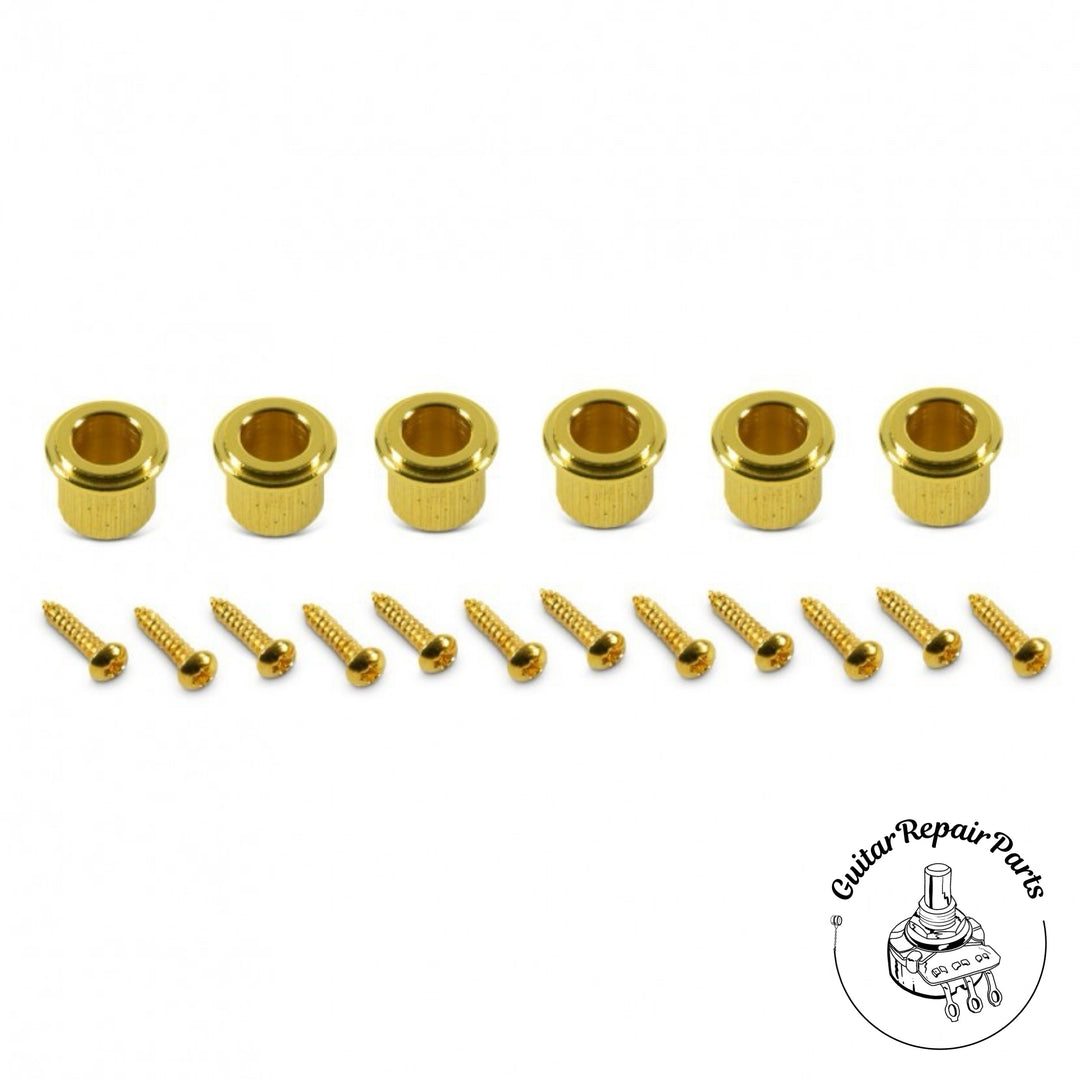

  • Comes with all mounting hardware

Kluson SKU: KRGLNC-3-CP

Professional installation is strongly recommended. Improper installation may result in damage to the product and/or instrument.
