The Kluson® Revolution H-Mount 19:1 high ratio tuning machine. A traditional 6 in line footprint with contemporary sealed diecast housing. The vintage outline, metal oval button and pinstripes pay tribute to Kluson® heritage while the stylized one-piece housing encloses the features that modern guitarist demand. A 19:1 high gear ratio guarantees silky smooth operation and fine tuning stability with no backlash.

These state of the art tuning machines are designed to retrofit diecast tuning machines with a push-in bushing, traditional Kluson® 6 in line mounting pattern and modern 11/32 inch peghole.

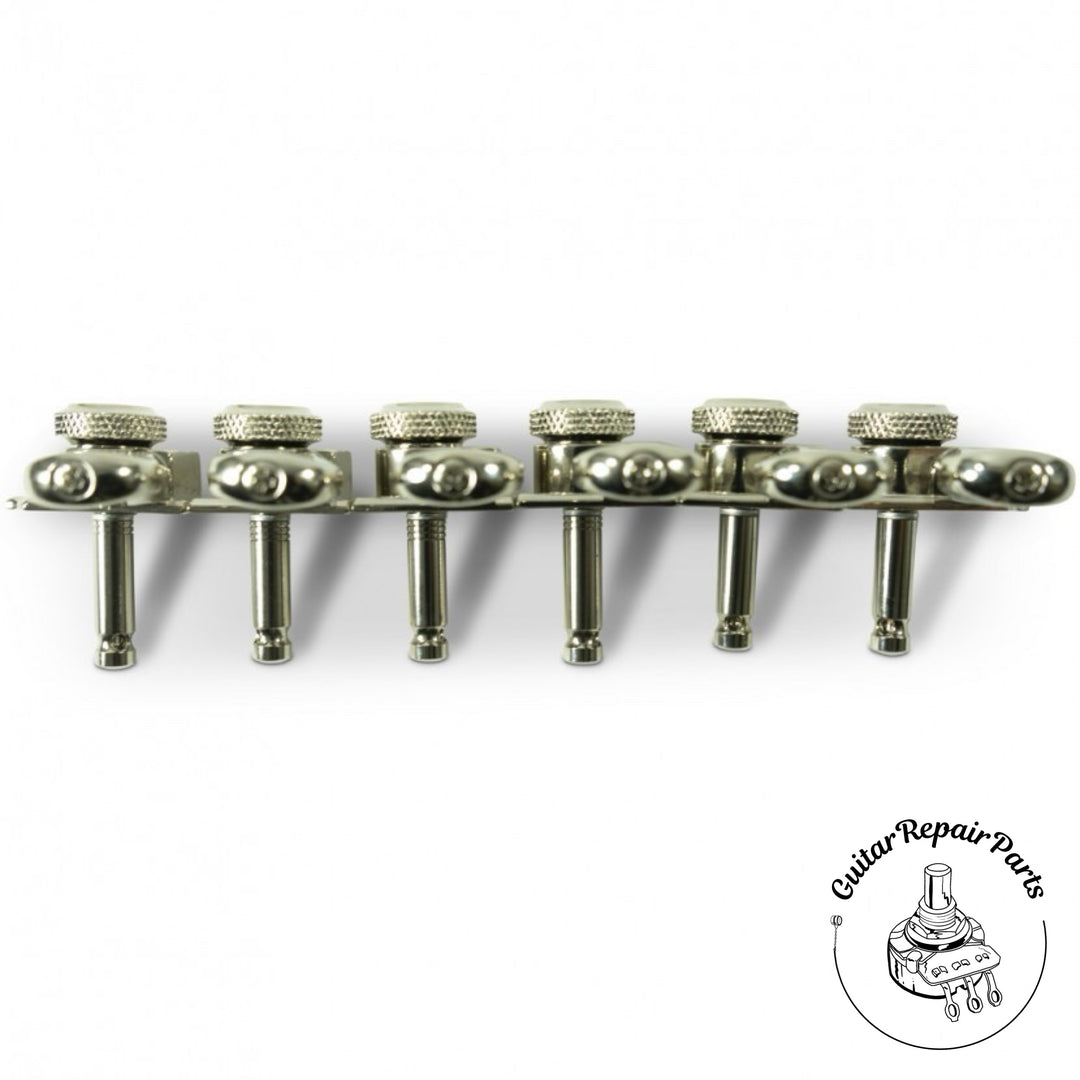

Newly upgraded with staggered post heights. Staggered posts negate the need for a traditional string tree. By eliminating the string tree, the break point created on the string before the nut is also removed; increasing string life, resonance, and tuning stability.

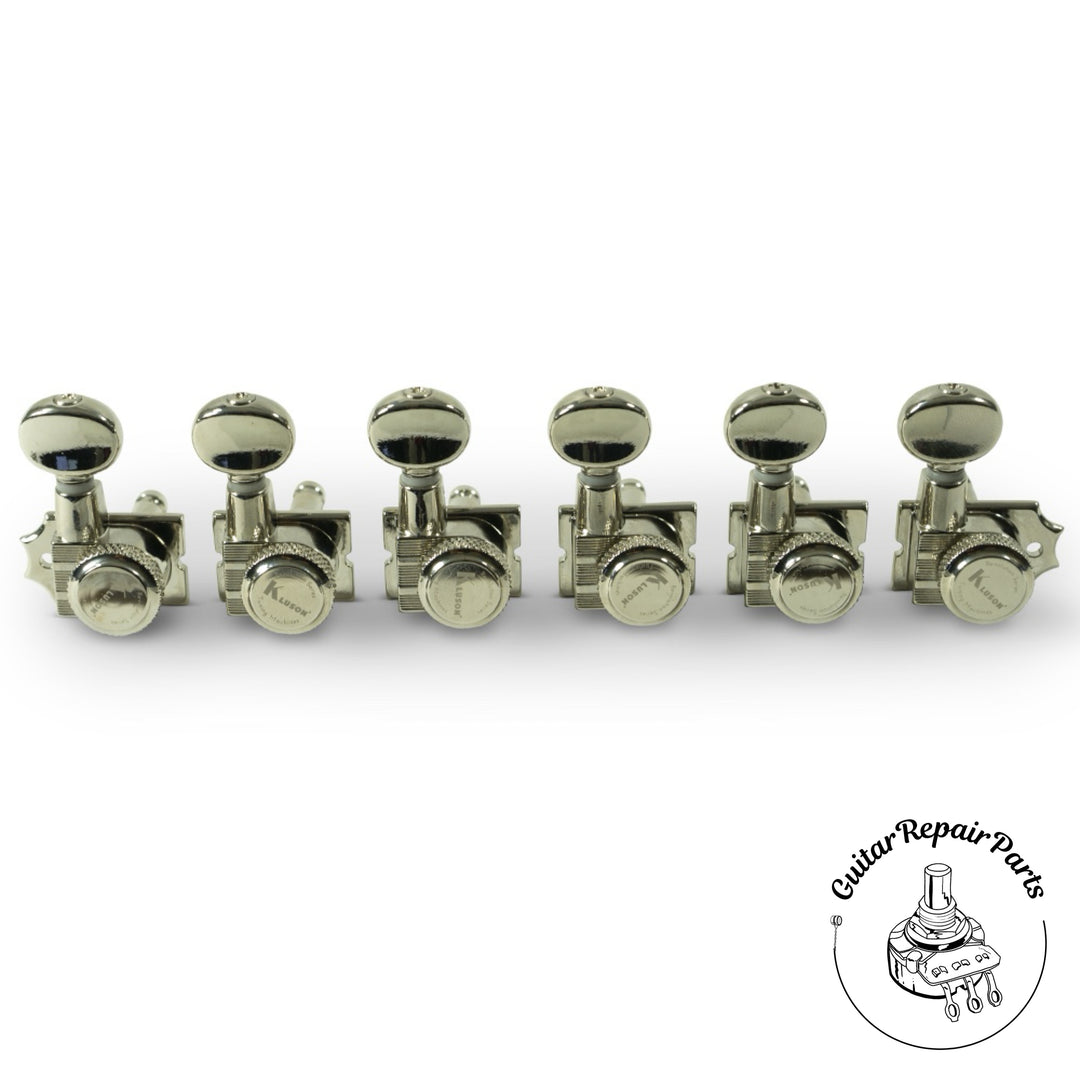

Includes 6 in line tuning machine set for right handed instruments and all mounting hardware.

Kluson SKU: KRHLNC-6BX-N

Specifications:

  • Gear Ratio= 19:1
  • Gear type= Steel worm and Brass ring
  • Locking mechanism= Knob
  • Bushing Type= Push In
  • Bushing Depth= 5/16 in. (7.5mm)
  • Bushing O.D.= 11/32 in. (8.8mm)
  • Bushing I.D.= (1/4 in. (6.5mm)
  • String Post Type= Staggered Kluson SafeTi Post
  • Staggered string post heights: (2) 18mm, (2) 19mm, (2) 20mm
  • 6mm string post diameter
  • String Post Material= Steel
  • Housing= Diecast
  • Mount Pattern= Vintage 6 in line Kluson

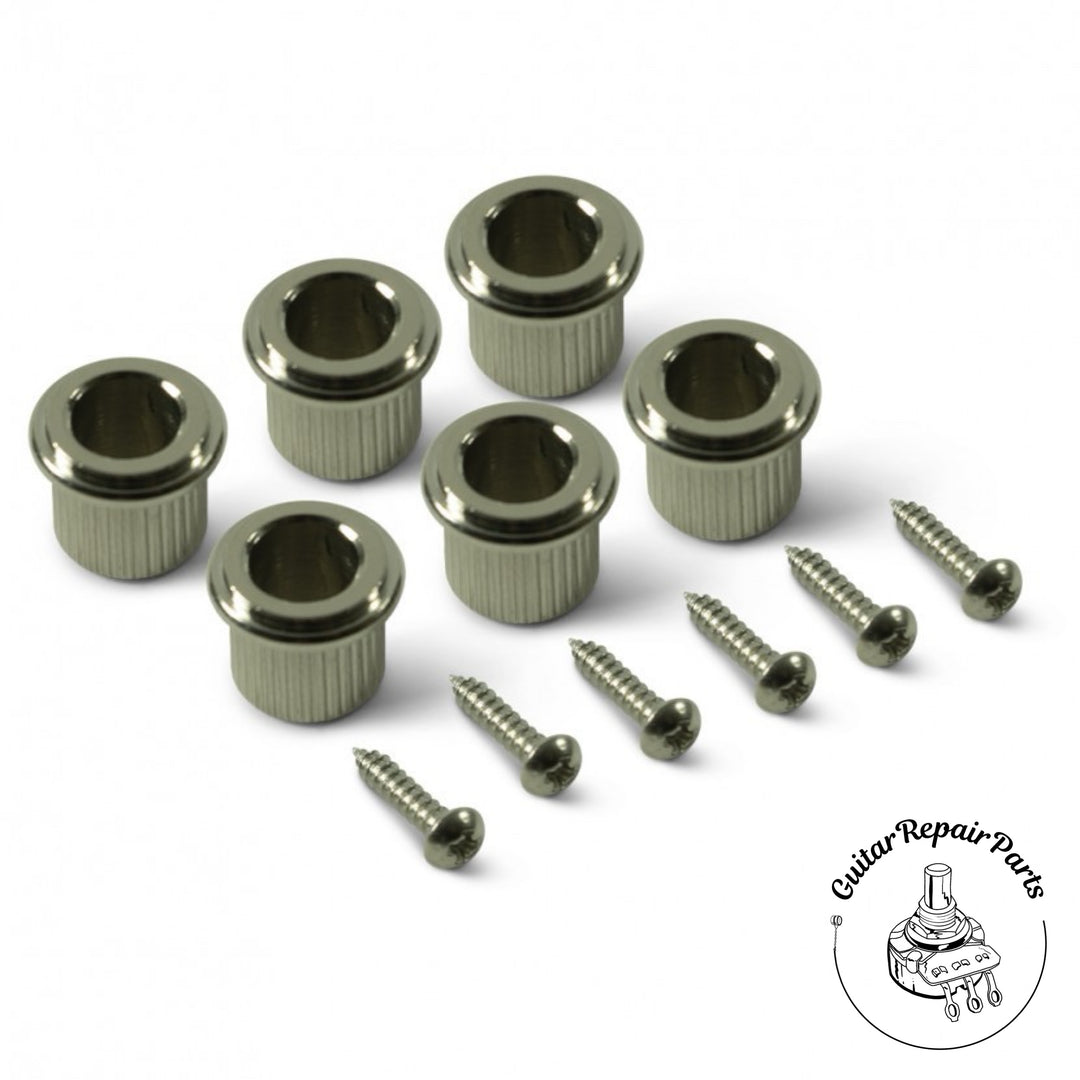

  • Comes with all mounting hardware

Professional installation is strongly recommended. Improper installation may result in damage to the product and/or instrument.
