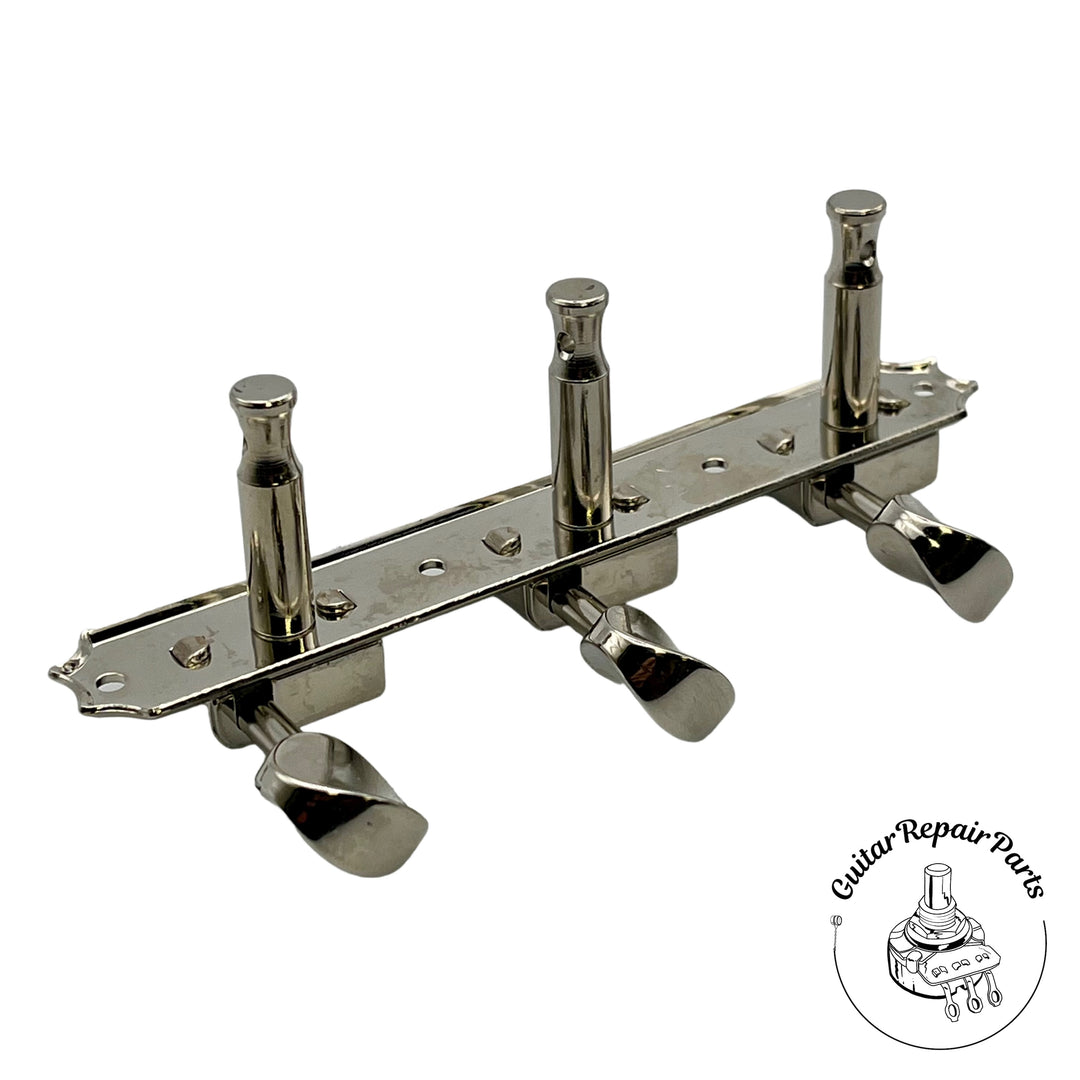

Kluson KTS-3P-NM Supreme Series Tuning Machines 3 On A Plate - Nickel Metal Oval
Kluson KTS-3P-NM Supreme Series Tuning Machines 3 On A Plate - Nickel Metal Oval
Kluson KTS-3P-NM Supreme Series Tuning Machines 3 On A Plate - Nickel Metal Oval
Kluson KTS-3P-NM Supreme Series Tuning Machines 3 On A Plate - Nickel Metal Oval
Kluson KTS-3P-NM Supreme Series Tuning Machines 3 On A Plate - Nickel Metal Oval
Kluson KTS-3P-NM Supreme Series Tuning Machines 3 On A Plate - Nickel Metal Oval
Kluson KTS-3P-NM Supreme Series Tuning Machines 3 On A Plate - Nickel Metal Oval
Kluson KTS-3P-NM Supreme Series Tuning Machines 3 On A Plate - Nickel Metal Oval
Kluson KTS-3P-NM Supreme Series Tuning Machines 3 On A Plate - Nickel Metal Oval
Kluson KTS-3P-NM Supreme Series Tuning Machines 3 On A Plate - Nickel Metal Oval

Kluson KTS-3P-NM Supreme Series Tuning Machines 3 On A Plate - Nickel Metal Oval

Price
Save $-59.22
/
  • Available By Special Order Only
  • See Below For Details

Can't find what you need in our store? We may be able to special order current-production parts from our vendors.

Use the contact form below to tell us what you're looking for. Please be as specific as possible and include the manufacturer, part number, model information, or any other relevant details.

We'll review your request and, when possible, provide pricing and availability. Submitting a special-order request does not obligate you to purchase the item. A special order is placed only after you have approved the order and paid the invoice in full.

Terms

  • Payment in full is required before a special order is placed.

  • Special orders are excluded from promotions and discounts, including shipping discounts.

  • Special orders with a total merchandise value under $50 are subject to a $15 special order processing fee. Any applicable fee will be disclosed before payment is requested.

  • Once placed, special orders cannot be modified, cancelled, or returned.

  • Special orders are limited to current-production items and are subject to vendor availability.

  • Lead times can vary considerably. Orders may take several weeks or longer to become available, and any estimated availability or shipping date provided is subject to change.

  • If our vendor is unable to fulfill a special order, we will notify you and issue a full refund to the original form of payment.

  • Shipping restrictions may apply. We may be unable to fulfill special orders for certain products or destinations.



This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

The Kluson® Supreme series tuning machines have an 18:1 gear ratio in the traditional stamped steel housing. This particular set is designed for instruments using a plate mounted 3 + 3 tuning machine set with an upgraded gear ratio to original machines.

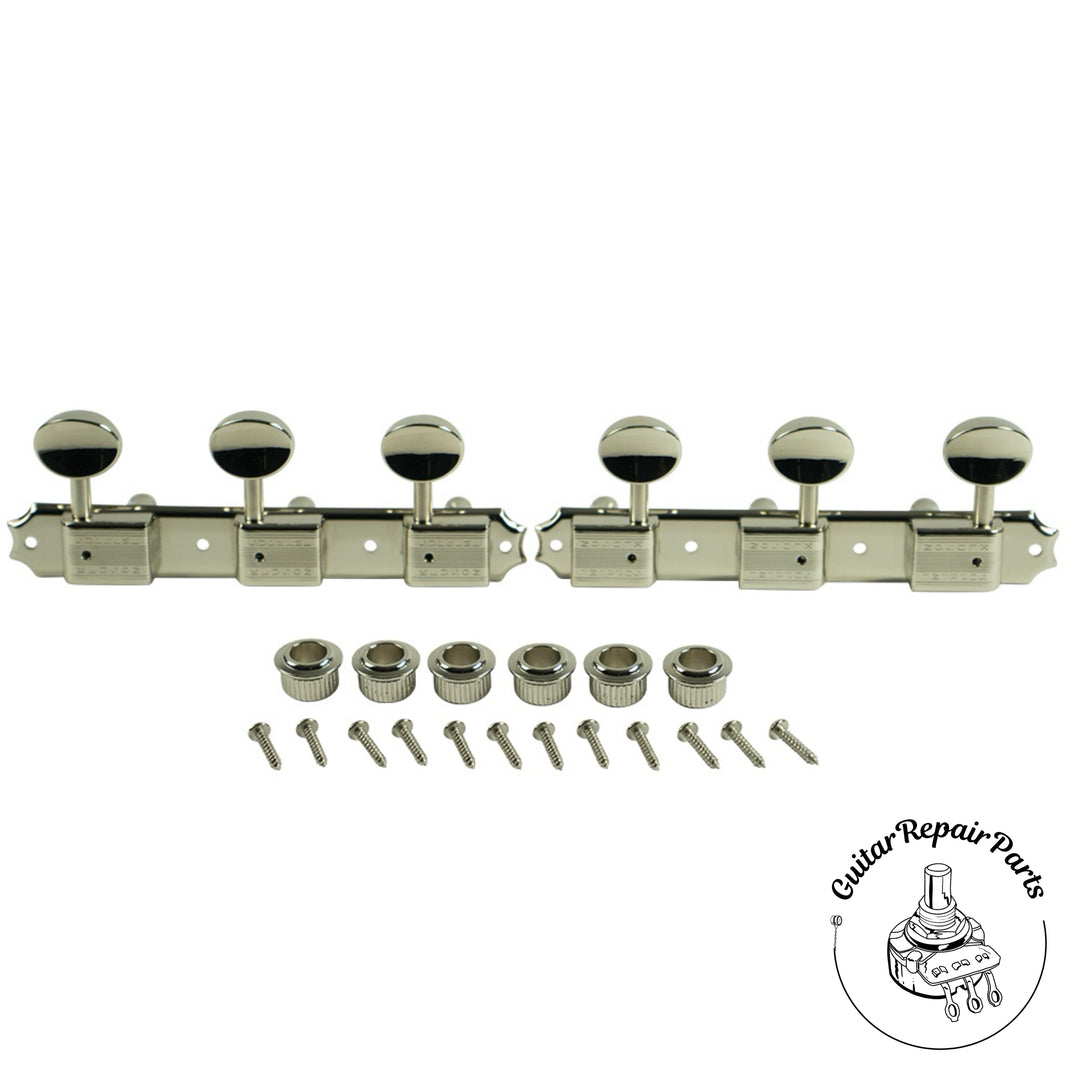

The housing bears the series name "SUPREME" in place of the original "DELUXE" moniker, in the familiar "double line" arrangement, but this is the only hint to what lies hidden under the dust cover. The smooth and reliable performance of the Supreme Series outshines the rest in its class. This is a complete set and comes with left and right side machines with hardware needed for installation.

Specifications

  • Gear Ratio = 18:1
  • Center to center distance of all 3 posts= 2 3/4 in.
  • Center to center distance between posts - 1 3/8 in.
  • Length of baseplate- 4 1/4 in., post height= 1 in.
  • Bushings: Kluson MB65N US
    • Outside diameter = 8.85mm
    • Inside diameter = 1/4 inch or 6.48mm

    Kluson SKU: KTS-3P-NM

    Professional installation is strongly recommended. Improper installation may result in damage to the product and/or instrument.
