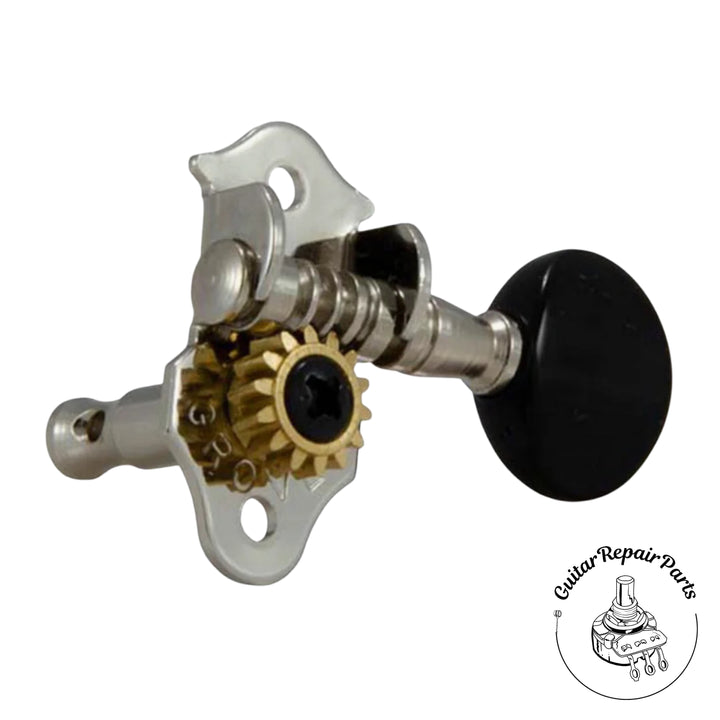

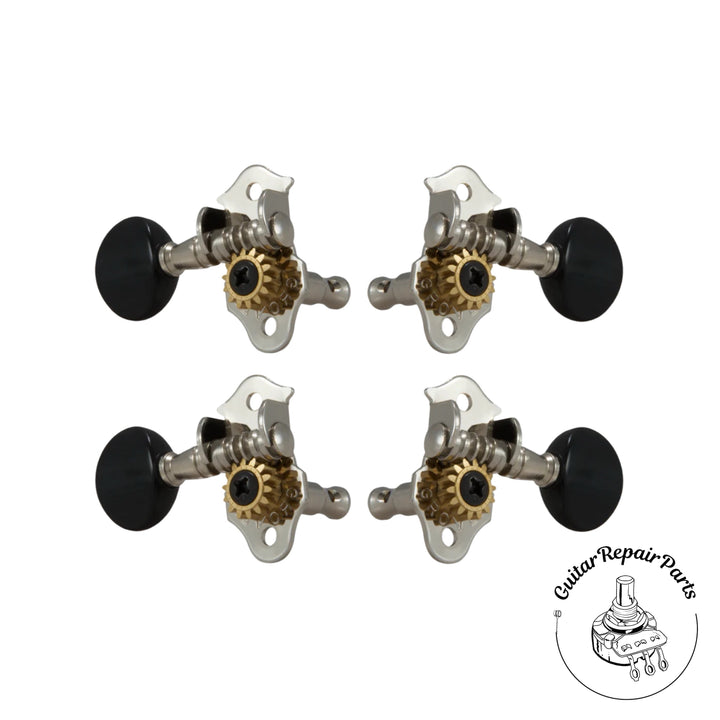

The Original Grover® Sta-Tite™ machine heads are now available for Ukuleles with the classic styling and butter bean button of the original Grover® Sta-Tite™ machine heads. Vertical string post in 2x2 configuration.
The #9 series has the same features, but with a shorter string post with the string hole .630 in. from the back of the base. Set includes all mounting hardware.
Specifications:
- Gear Ratio = 14:1
- Post Height: 13/16 in. = (20.65mm)
- Post Diameter: 15/64 in. = (6mm)
- Push In Bushing OD: 23/64 in. (9.1mm) ID: 0.24 in. = (6.1mm)
- Mounting hole locations 12:00 and 6:00
- Distance between mounting holes: .943 in. = (24mm)
- Mounting plate length Top to Bottom = 119/64 in. (33.mm)
Allparts SKU: TK-7972-001
Please Note: Grover tuning machines produced prior 1985 use different specifications for threading and shaft sizing. Current production replacement parts are not interchangeable on vintage (pre-1985) Grover tuning machines.
Professional installation is strongly recommended. Improper installation may result in damage to the product and/or instrument.
