Gotoh GHL-1 B Locking Nut, 43mm, Rear-Mounted, For 6-String Guitar - Black
Gotoh GHL-1 B Locking Nut, 43mm, Rear-Mounted, For 6-String Guitar - Black
Gotoh GHL-1 B Locking Nut, 43mm, Rear-Mounted, For 6-String Guitar - Black
Gotoh GHL-1 B Locking Nut, 43mm, Rear-Mounted, For 6-String Guitar - Black

Gotoh GHL-1 B Locking Nut, 43mm, Rear-Mounted, For 6-String Guitar - Black

Price
Save $-27.99
/
  • Fast, free, shipping on orders of $99 or more
  • 30 Day Return Policy
  • Low stock - 1 item left
  • Backordered, shipping soon
Shipping calculated at checkout.

The Gotoh GHL-1 B is a black, bottom-mount (rear-mount) locking nut designed for electric guitars with Floyd Rose-style tremolo systems. It features a 43mm width (R4 size), a 400mm (15.74") fretboard radius, and a neck-through/rear-mounting design where screws fasten from the back of the neck.

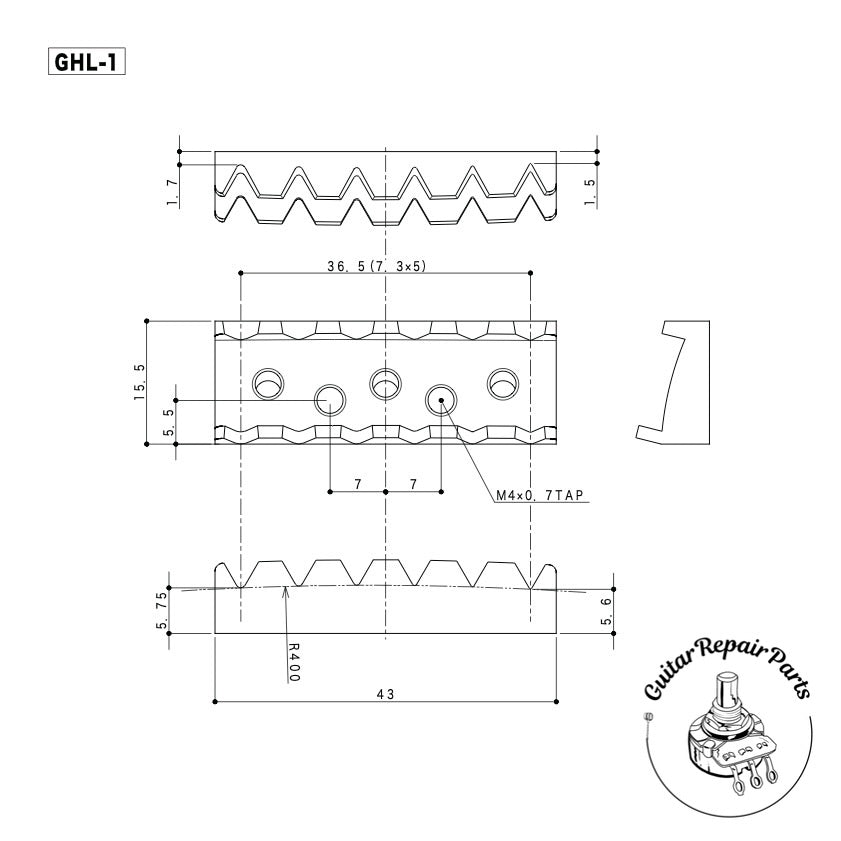

Specifications:

  • Width: 43 mm (1-11/16")
  • String Spacing (Spread): 36.5 mm (1-7/16")
  • Radius: 400 mm (15.74")
  • Mounting Type: Bottom mount / Rear-mount (bolts insert through the back of the neck)
  • Material: Zinc
  • Origin: Made in Japan

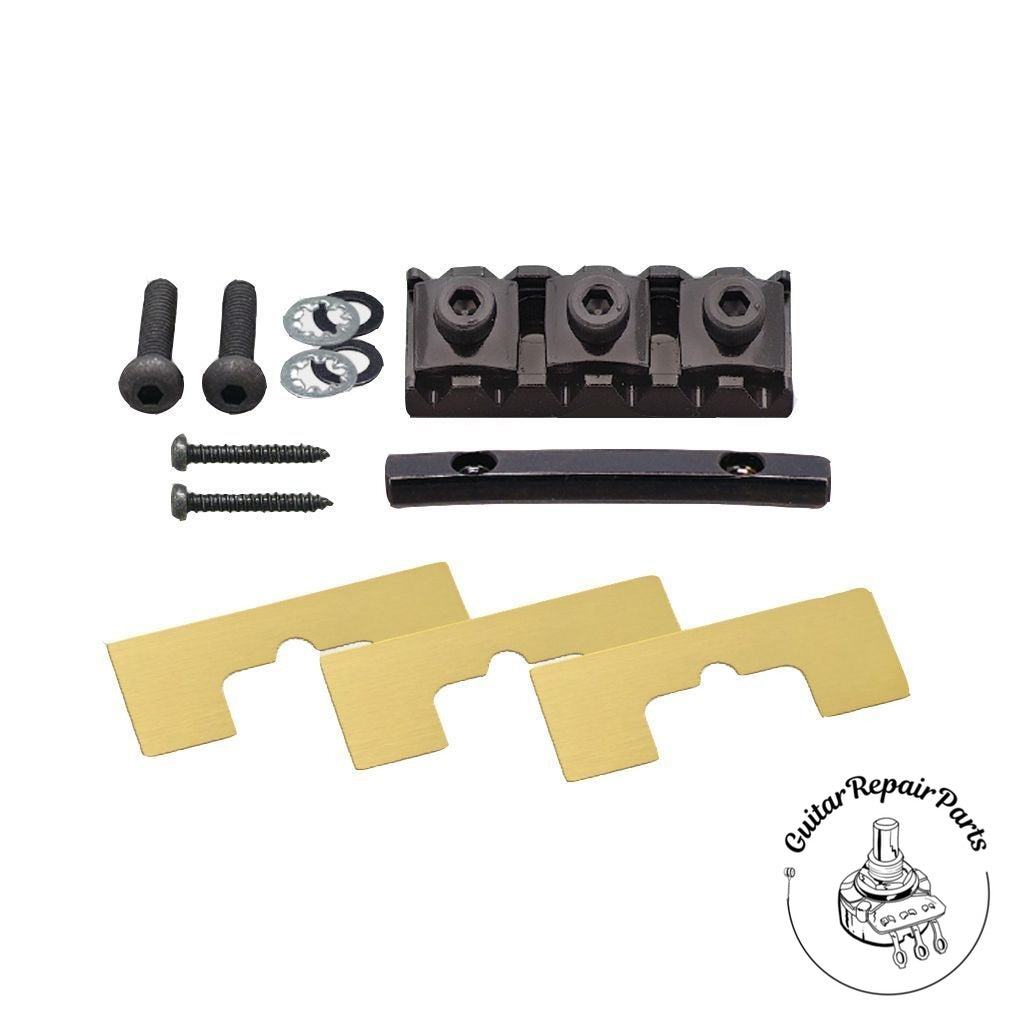

  • Included Hardware: Locking nut assembly, mounting screws, height adjustment shims, and Allen wrenches.

Note: This nut has a flat bottom and is not notched to accommodate bullet style truss rods.

Professional installation is strongly recommended. Improper installation may result in damage to the product and/or instrument.
